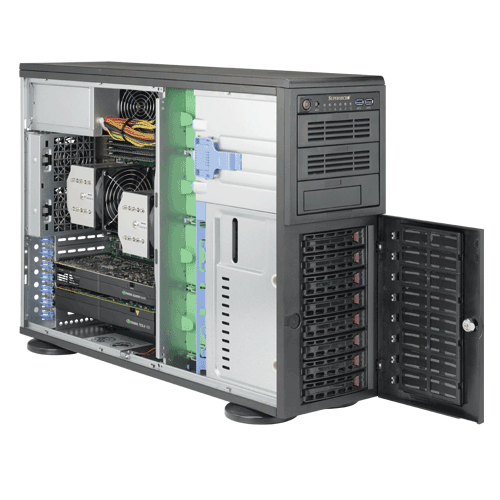

Supermicro 4U Rackmount SuperWorkstation SYS-7048A-T - Angle

More Views

Supermicro 4U Rackmount SuperWorkstation SYS-7048A-T

Description

Details

Supermicro SuperWorkstation SYS-7048A-T

Product SKU
SYS-7048A-T	• SuperWorkstation

Motherboard
	• Super X10DAi

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Note	Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	• Intel® i210 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC888 7.1 High Definition Audio with S/PDIF header

Input/Output
SATA	• 10 SATA3 (6Gbps) ports
LAN	• 2 RJ45 Gigabit Ethernet LAN ports
USB	• 6 USB 3.0 ports (4 rear + 2 via header) • 5 USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Audio	• 7.1 HD Audio with optical S/PDIF
DOM	• 2 DOM (Disk on Module) power connectors
TPM	• 1 TPM 1.2 20-pin Header

Expansion Slots
PCI-Express	• 3 PCI-E 3.0 x16 slots • 2 PCI-E 3.0 x8 slots • 1 PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1

Chassis
Form Factor	• 4U Rackmountable / Tower • Optional Rackmount Kit
Model	• CSE-743TQ-1200B-SQ

Dimension and Weight
Height	• 17.8" (452mm)
Width	• 7" (178mm)
Depth	• 25.5" (648mm)
Gross Weight	• 71 lbs (32.2 kg)
Available Colors	• Black

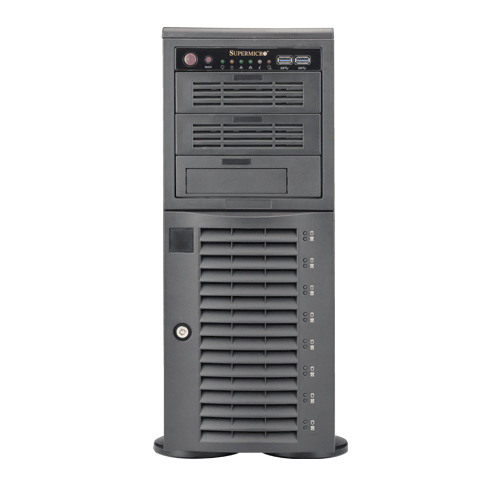

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2 Network activity LEDs • System Overheat / Fan Fail LED
Ports	• 2 front USB 3.0 Ports

Drive Bays
Hot-swap	• 8x 3.5" Hot-swap SAS/SATA Drive Trays
Peripheral Bay(s) [90o Rotatable]	• 3x 5.25" Drive Bays

SAS/SATABackplane
	• SAS / SATA Hard Drive Backplane w/AMI MG9072

System Cooling
Fans	• 2x 2800 RPM Fans • 1x 2700 RPM Fan

Power Supply
	1200W high-efficiency power supply w/ PMBus
AC Input	• 1000W: 100-114.9 V, 50-60 Hz, 12 Amp • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output 1000W max 1200W max	• +3.3V / +5V / +12V / -12V / +5VSB • 20A / 20A / 83A / 0.3A / 3A • 20A / 20A / 99A / 0.3A / 3A
Note:	• Max. continuous combined load on +3.3V and +5V output shall not exceed 120W
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Total of three fan headers supporting up to 8 fans • Three 4-pin fan headers • 3 fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control (4-pin fan only)
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI
Other Features	• Chassis intrusion detection • Chassis intrusion header

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
