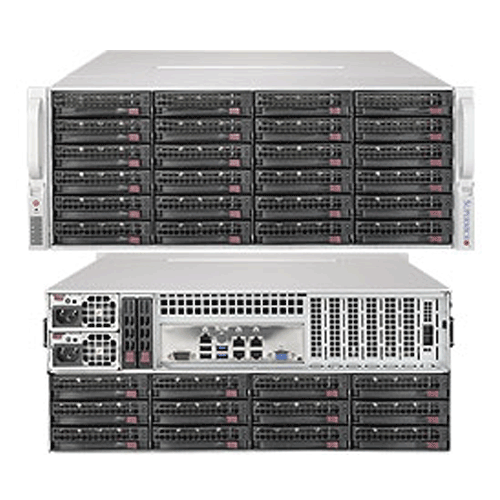

Supermicro 4U Rackmount SuperStorage SSG-6049P-E1CR36H

More Views

  • Supermicro 4U Rackmount SuperStorage SSG-6049P-E1CR36H

Supermicro 4U Rackmount SuperStorage SSG-6049P-E1CR36H | Intel Xeon Scalable Processors

Call for price.
SKU:SSG-6049P-E1CR36H

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Up to 2TB ECC 3DS LRDIMM
• 36 Hot-swap 3.5" SAS3/SATA3 direct attached drive bays
• 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
• 7x 8cm high-performance PWM fans
• 1200W Redundant Power Supplies Titanium Level (96%)


Details

Supermicro SuperStorage SSG-6049P-E1CR36H

Product SKU
SSG-6049P-E1CR36H • SuperServer 6049P-E1CR36H (Black)
Motherboard
     Super X11DPH-T
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors,3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 16 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
On-Board Devices
Chipset • Intel® C624 chipset
SAS • SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID
• RAID 0, 1, 5, 6, 10, 50, 60
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• ASPEED AST2500 BMC
Input/Output
LAN • 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 4 USB 3.0 ports (rear)
• 1 Type A
VGA • 1 VGA port
Serial Port/ Header • 1 Fast UART 16550 port / 1 Header
System Bios
BIOS Type • 256Mb AMI UEFI
Management
Software • Intel® Node Manager
• IPMI 2.0
• NMI
• SPM, SUM
• SuperDoctor® 5
• Watchdog
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature




 • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factore • 4U Rackmount
Model • CSE-847BE1C4-R1K23LPB
Dimension and Weight
Height • 17.2" (437mm)
Width • 7" (178mm)
Depth • 27.5" (699mm)
Gross Weight • 65.5 lbs (29.7 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
• Power fail LED
Expansion Slots
PCI-Express

• 3 PCI-E 3.0 x16 slot
• 4 PCI-E 3.0 x8 slots
• Slot 2 & 3 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap

• 36 Hot-swap 3.5" SAS3/SATA3 drive bays
Optional • 2 Optional Onboard NVMe M.2
Backplane


• SAS3/SATA3 single expander per backplane
System Cooling
Fans

• 7x 8cm high-performance PWM fans
• Redundant cooling
Power Supply(76mm Width)
  1200W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1200W
Dimension
(W x H x L)		 • 76 x 40 x 336 mm
Input • 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
• 200-240Vdc / 8.5-7A (for CCC only)
+12V • Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
• Max: 100A / Min: 0A (200-240Vdc)
+5Vsb • Max: 4A / Min: 0A
Output Type • 19 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
