  • Supermicro 4U Rackmount SuperStorage SSG-6048R-E1CR45H

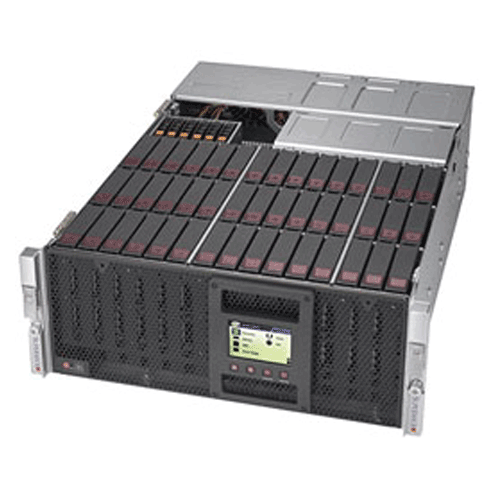

Supermicro 4U Rackmount SuperStorage SSG-6048R-E1CR45H

Call for price.
SKU:SSG-6048R-E1CR45H

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 3TB† ECC 3DS LRDIMM; 24x DIMM
• 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
• SIOM for flexible networking options
• 45 Hot-swap 3.5" SAS3/SATA3 drive bays;
  2 rear Hot-swap 2.5" SATA drive bays; optional 6 NVMe bays
• 5 hot-swap 8cm redundant PWM fans PWM fans
• 1600W Redundant Power Supplies Platinum Level (94%+) Certified


Details

Supermicro SuperStorage SSG-6048R-E1CR45H (Complete System Only)
Product SKU
• SuperServer 6048R-E1CR45H (Black)
Motherboard
  • Super X10DSC+
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Note Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization
System Memory
Memory Capacity • 24x 288-pin DDR4 DIMM slots
• Up to 3TB† ECC 3DS LRDIMM, 768 ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices
Chipset • Intel® C612 chipset
SAS • Broadcom 3108 SAS3, HW RAID
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• SIOM support for flexible networking options

Graphics

• ASPEED AST2400 BMC

Input/Output
USB • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA • 1 VGA port
Serial Port/Header






























• 1 Fast UART 16550 port / 1 Header






























Chassis
Form Factor • 4U Rackmount
Model CSE-946LTS-R1K66P
Dimension and Weight
Width • 17.2" (437mm)
Height •7" (178mm)
Depth • 26" (660mm)
Gross Weight • N.A.
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power status LED
• Hard drive activity LED
• 2 Network activity LEDs
• System Overheat LED
• Power fail LED
LCD • 3.5" TFT LCD panel
• Full-Color display with 320x480 pixels
• Real-time system status from IPMI
• Easy read graphical User Interface
Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 slots
• 1 PCI-E 3.0 x8 slot

Drive Bays
Hot-swap

• 45 Hot-swap 3.5" SAS3/SATA3 drive bays
• 2 Rear Hot-swap 2.5" SATA drive bays

Optional • 6 NVMe bays (optional)
Backplane


• SAS3/SATA3 single expander per backplane

System Cooling
Fans

• 5 Hot-swap 80mm rear exhaust cooling fans
• Redundant cooling

Power Supply
  1600W 1U Redundant Power Supplies with PMBus
Total Output Power • 1000W/1600W
Dimension
(W x H x L)
• 73.5 x 40 x 265 mm
Input • 100-127Vac / 12.9A Max / 50-60Hz
• 200-240Vac / 9.5A Max / 50-60Hz
+12V • Max: 82A / Min: 0.1A (100-127Vac)
• Max: 132A / Min: 0.1A (200-240Vac)
12V SB • Max: 2A / Min: 0.2A
Output Type • 25 Pairs Gold Finger Connector
Certification • Platinum Level
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
