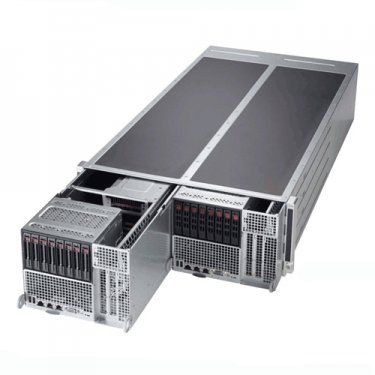

Supermicro 4U Rackmount SuperServer SYS-F648G2-FT+ Front02

More Views

Supermicro 4U Rackmount SuperServer SYS-F648G2-FT+

Description

Details

Supermicro SuperServer SYS-F648G2-FT+

Product SKU
SYS-F648G2-FT+	• SuperServer F648G2-FT+ (Black)

Motherboard
	• Super X10DRFF-IG

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Note	Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization
GPU/Xeon Phi Support	• 6x Double-width GPU/Xeon Phi per node (total of 12x GPU/Xeon Phi cards in 4U) • Supports Intel Xeon Phi • Supports NVIDIA K1/K2/K10/K20M/K20X/K40M/K80(only supports 4 per node), Xeon Phi 5110P, and Xeon Phi 3120P/7120P

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® i350 Dual Port GbE LAN • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output (per node)
SATA	• 8x SATA3 (6Gbps) ports
LAN	• 2x RJ45 GbE LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports
VGA	• 1x VGA port

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-F442BG-R2K04BP

Dimension and Weight
Width	• 17.63" (448mm)
Height	• 6.96" (177mm)
Depth	• 35" (889mm)
Gross Weight	• 150 lbs (68.04 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power status LED • UID LED

Expansion Slots (per node)
PCI-Express	• 6x PCI-E 3.0 x16 Double-width GPU/Xeon Phi • 2x PCI-E 3.0 x8 slots (Full-height, Half-length)

Drive Bays (per node)
Hot-swap	• 8x 2.5" Hot-swap drive bays

System Cooling
Fans/Air Shroud	• 8x 80mm heavy duty fans with air shroud and PWM fan speed control and additional fans available

Power Supply (76mm Width)
	2000W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1800W/1980W/2000W
Dimension (W x H x L)	• 76 x 40 x 336 mm
Input	• 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0A (100-127 Vac) • Max: 150A / Min: 0A (200-220 Vac) • Max: 165A / Min: 0A (220-230 Vac) • Max: 166.7A / Min: 0A (230-240 Vac) • Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb	• Max: 1A / Min: 0A
Output Type	• 27 Pairs Gold Finger Connector
Certification	• Titanium Level

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
