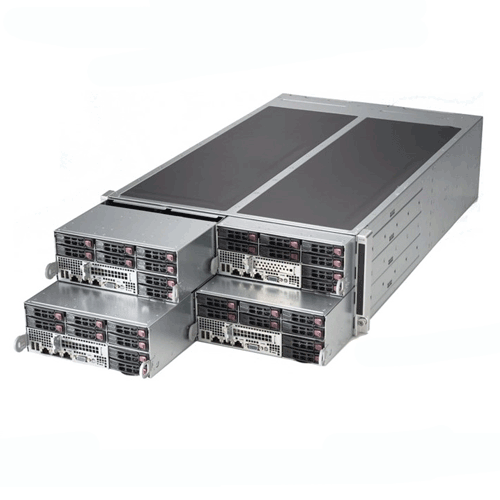

  • Supermicro 4U Rackmount SuperServer SYS-F628R2-FC0 - Angle

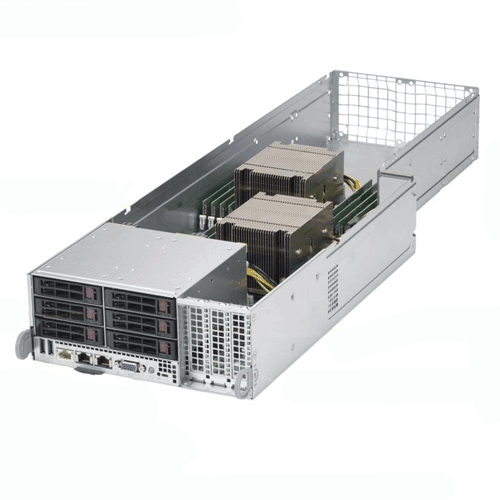

  • Supermicro 4U Rackmount SuperServer SYS-F628R2-FC0 - Node01

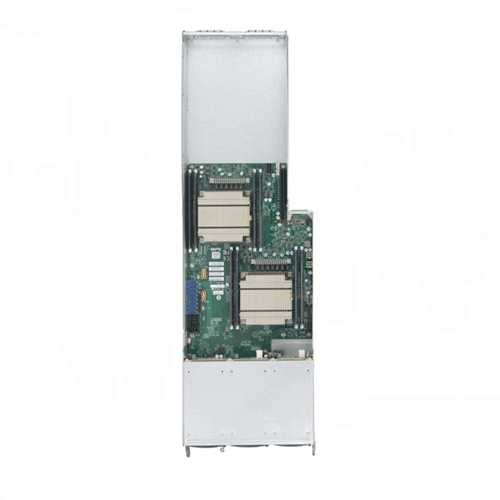

  • Supermicro 4U Rackmount SuperServer SYS-F628R2-FC0 - Node02

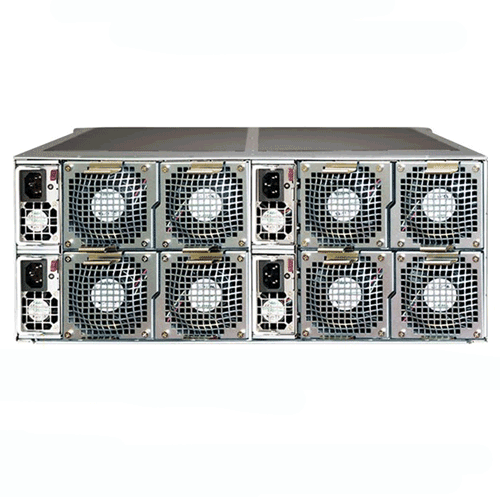

  • Supermicro 4U Rackmount SuperServer SYS-F628R2-FC0 - Rear

Supermicro 4U Rackmount SuperServer SYS-F628R2-FC0

Call for price.
SKU:SYS-F628R2-FC0

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB† ECC 3DS LRDIMM; 8x DIMM slots
• 1x PCI-E 3.0 x16 (LP) slot
• Front I/O: 2 GbE LAN, 2 USB 3.0, and 1 VGA connector
• 8x 2.5" Hot-swap SAS/SATA HDD Bays;
   SAS3 (12Gbps) via Broadcom 3008
• 1280W Redundant Power Supplies Platinum Level (95%)


Details

Supermicro SuperServer SYS-F628R2-FC0

Product SKU
• SuperServer F628R2-FC0 (Black)
Motherboard
  • Super X10DRFF-C
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Note Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 8x 288-pin DDR4 DIMM slots
• Up to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices
Chipset • Intel® C612 chipset
SAS • SAS3 (12Gbps) via Broadcom 3008
• SW RAID 0, 1, 10 support
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• Intel® i210 Single Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)

Graphics

• Aspeed AST2400 BMC Controller

Input/Output (per node)
SAS • 8x SAS3 (12Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports
VGA



• 1x VGA port



Chassis
Form Factor • 4U Rackmount
Model CSE-F424BD-R1K28BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 150 lbs (68.04 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 x16 (LP) via riser card

Drive Bays (per node)
Hot-swap

• 8x 2.5" Hot-swap SAS/SATA HDD trays

System Cooling
Fans

• 8x 8cm 9.5K RPM Rear Fans and PWM fan speed control

Power Supply
  1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input • 1000W Output @ 100-140V, 8-12A, 50-60Hz
• 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
• 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, +5Vsb/4A
Certificaiton • Platinum Certified
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
