  • Supermicro 4U Rackmount SuperServer SYS-F627R3-R72B+

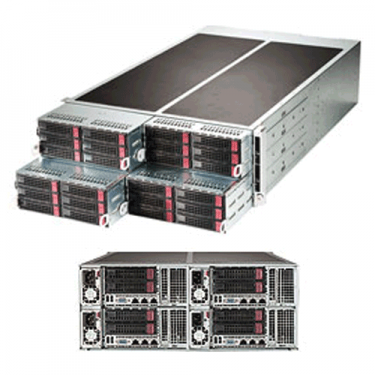

Supermicro 4U Rackmount SuperServer SYS-F627R3-R72B+

Call for price.
SKU:SYS-F627R3-R72B+

Quick Overview:

Key Features:
• 4 Hot-plug System Nodes in 4U
• Dual socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB ECC DDR3; 16x DIMM slots
• 6+2 3.5" Hot-swap SAS2 HDD Bays via Broadcom 2208
• 2 heavy duty internal fans
• 1280W Redundant Power Supplies Platinum Level (95%)


Details

Supermicro SuperServer SYS-F627R3-R72B+

Product SKU
• SuperServer F627R3-R72B+ (Black)
Motherboard
  • Super X9DRFR
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP; 130W TDP up to 47°C *)
• Dual Socket R (LGA 2011)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
  • Up to 30MB
Note • QPI up to 8 GT/s
System Memory (per node)
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset • Intel® C602 Chipset
AHCI SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1
SCU SATA • SATA 2.0 3Gbps with RAID 0, 1, 10
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

SAS

• SAS2 via Broadcom 2208
• HW RAID 0, 1, 5, 6, 10, 50, 60 support

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Input/Output (per node)
AHCI SATA • 2x SATA 3.0 ports (6Gbps)
• 4x SATA 2.0 ports (3Gbps)
SCU SATA • 2x SATA 2.0 ports (3Gbps)
SAS • 8x SAS 2.0 ports (6Gbps)
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 2x RJ45 Gigabit Ethernet LAN ports ##1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 2.0 ports
VGA • 1x VGA port
Serial Port/Header • 1x Fast UART 16550 port
Chassis
Form Factor • 4U Rackmount
Model CSE-F424AS-R1K28BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 150 lbs (68.04 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 x16 (LP) + 1 Micro LP
• MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap

• (6+2) 3.5" Hot-swap SAS2/SATA HDD trays

Backplane


• 1x SAS2 / SATA backplane

System Cooling (per node)
Fans

• ##2x 8cm 11k RPM middle fans

Power Supply
  1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input • 1000W Output @ 100-140V, 8-12A, 50-60Hz
• 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
• 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, +5Vsb/4A
Certification • Platinum Certified
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec.








• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
