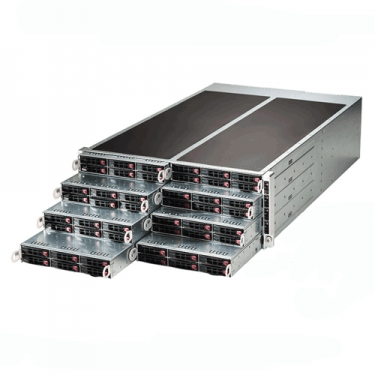

  • Supermicro 4U Rackmount SuperServer SYS-F618R2-RTPT+ Angle
  • Supermicro 4U Rackmount SuperServer SYS-F618R2-RTPT+  Node01
  • Supermicro 4U Rackmount SuperServer SYS-F618R2-RTPT+  Node02
  • Supermicro 4U Rackmount SuperServer SYS-F618R2-RTPT+ Rear

Supermicro 4U Rackmount SuperServer SYS-F618R2-RTPT+

Call for price.
SKU:SYS-F618R2-RTPT+

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM slots
• 6x Hot-swap 2.5" SATA3 HDD Bays
• 3x heavy duty internal fans
• 1620W Redundant Power Supplies Platinum Level (94%)


Details

Supermicro SuperServer SYS-F618R2-RTPT+

Product SKU
• SuperServer F618R2-RTPT+ (Black)
Motherboard
  • Super X10DRFR-NT
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Note Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
•Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• ASPEED AST2400 BMC

Input/Output (per node)
Serial ATA • 10x SATA3 (6Gbps) ports
LAN • 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports
VGA • 1x VGA port
Management
Software • SuperDoctor® 5
• Watch Dog
• NMI
• IPMI 2.0
• SUM and SSM
Power
Configuration
• ACPI / APM Power Management
• Power-on mode for AC power recovery

Chassis
Form Factor • 4U Rackmount
Model CSE-F418BC-R1K62BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 200 lbs (90.71 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express

• 1x PCI-E 3.0 x16 Low-profile
• PCI-Express 1x PCI-E 3.0 x16 Low-profile 1x PCI-E 3.0 x8 (Micro LP)
• MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap

• 6x 2.5" Hot-swap SATA3 HDD trays

Backplane


• 1x SAS/SATA backplane

System Cooling (per node)
Fan

• 3x 4cm 14k RPM middle fans

Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
• 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certificaiton • Platinum Certified
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• UEFI
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
