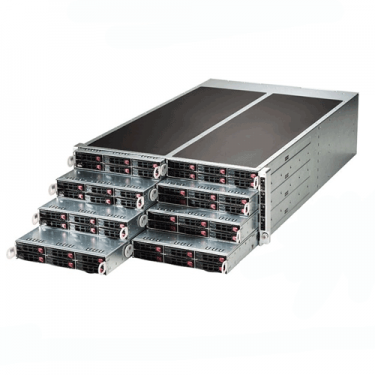

  • Supermicro 4U Rackmount SuperServer SYS-F618R2-RC0PT+ Angle
  • Supermicro 4U Rackmount SuperServer SYS-F618R2-RC0PT+ Node01
  • Supermicro 4U Rackmount SuperServer SYS-F618R2-RC0PT+ Node02
  • Supermicro 4U Rackmount SuperServer SYS-F618R2-RC0PT+ Rear

Supermicro 4U Rackmount SuperServer SYS-F618R2-RC0PT+

Call for price.
SKU:SYS-F618R2-RC0PT

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM Slots
• 6x 2.5" Hot-swap SAS/SATA via Broadcom 3008 or
   4x 2.5" Hot-swap SAS/SATA + 2x optional NVMe
• 3x heavy duty internal fans
• 2000W High efficiency (96%) Redundant PSU; Titanium Level

Details

Supermicro SuperServer SYS-F618R2-RC0PT+

Product SKU
• SuperServer F618R2-RC0PT+ (Black)/td>
Motherboard
  • Super X10DRFR-NT
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Notes Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices
Chipset • Intel® C612 chipset
SAS • SAS3 (12Gbps) via Broadcom 3008
• SAS3 (12Gbps) via Broadcom 3008 HBA/SW RAID 0, 1, 10 support
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network
Controllers

• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• ASPEED AST2400 BMC

Input/Output (per node)
SAS • 6 SAS3 (12Gbps) ports
LAN • 2 RJ45 10GBase-T LAN ports
• 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports
VGA • 1 VGA port
Management
Software • Intel® Node Manager
• SuperDoctor® 5
• Watch Dog
• NMI
• IPMI 2.0
• SUM and SSM
Power
Configuration

• ACPI / APM Power Management
• Power-on mode for AC power recovery

Chassis
Form Factor • 4U Rackmount
Model CSE-F418BC-R2K04BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 200 lbs (90.71 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power status LED
• 1 Network activity LED for LAN 1 & LAN 2
• Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 x16 Low-profile
• 1 PCI-E 3.0 x8 (Micro LP)
• MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap

• 6x 2.5" Hot-swap SAS/SATA drives
• Optional NVMe support (Note: NVMe support requires 2 CPUs installed)

Backplane


• 1x SAS/SATA backplane

System Cooling (per node)
Fans

• 3x 4cm 14k RPM middle fans

Power Supply (76mm Width)
  2000W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
• 76 x 40 x 336 mm
Input • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V • Max: 83.3A / Min: 0A (100-127 Vac)
• Max: 150A / Min: 0A (200-220 Vac)
• Max: 165A / Min: 0A (220-230 Vac)
• Max: 166.7A / Min: 0A (230-240 Vac)
• Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb • Max: 1A / Min: 0A
Output Type • Max: 1A / Min: 0A Output Type 27 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
