Details

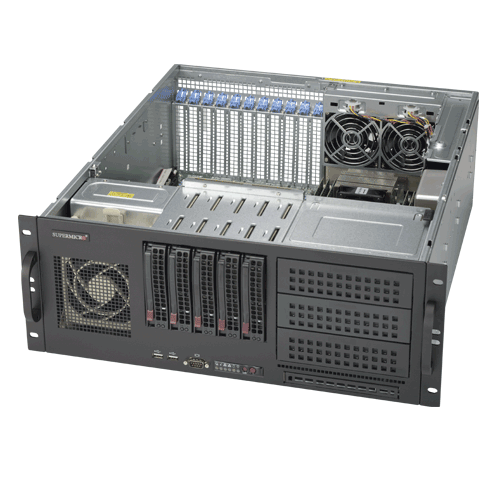

Supermicro SuperServer SYS-6048R-TXR
|
Product SKU
| |
|---|---|
| SYS-6048R-TXR | • SuperServer 6048R-TXR (Black) |
|

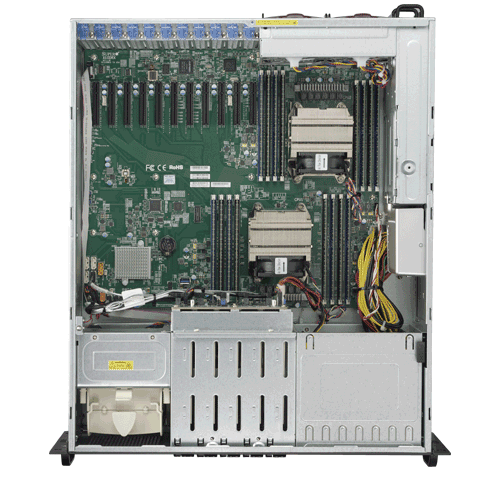

Motherboard
| |
|---|---|
| • Super X10DRX | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| † BIOS version 2.0 or above is required | |
| Note | • Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512 ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® C612 chipset |
|---|---|
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers | • Intel® i350 Dual Port Gigabit Ethernet |
| Graphics |
• ASPEED AST2400 BMC |
|

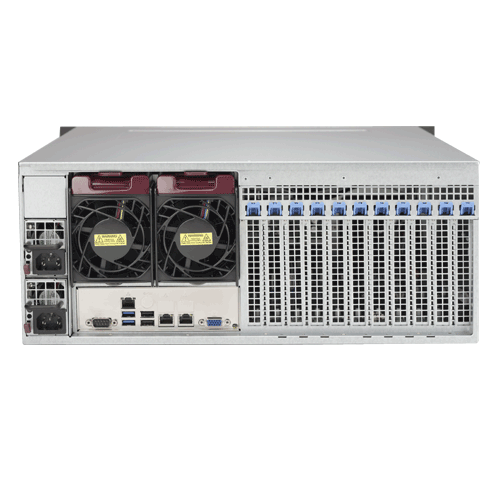

Input/Output
| Serial ATA | • 10x SATA3 (6Gbps) ports | LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 5x USB 3.0 ports (2 rear, 2 via header, 1 Type A) • 4x USB 2.0 ports (2 rear, 2 via headers) |
|---|---|
| Video | • 1x VGA port |
| Serial Port/Header | • 2x COM ports (1 rear, 1 Header) |
| DOM | • 2x SuperDOM (Disk on Module) ports |
| TPM | • 1x TPM 1.2 20-pin Header |
|
Expansion Slots
| PCI-Express | • 10x PCI-E 3.0 x8 slots • 1x PCI-E 2.0 x4 (in x8) slot |
|---|---|
| Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details. | |
|
System BIOS
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS |
|---|---|
| BIOS Features |
• Plug and Play (PnP) • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • BIOS rescue hot keys • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
|
Chassis
| |
|---|---|
| Form Factor | • XXXXX |
| Model | • XXXXX |
|
Dimension and Weight
| |
|---|---|
| Width | • 17.2" (437mm) |
| Height | • 7.0" (178mm) |
| Depth | • 20.68" (525mm) |
| Gross Weight | • 49 lbs (22.2kg) |
| Available Colors | • Black |
|

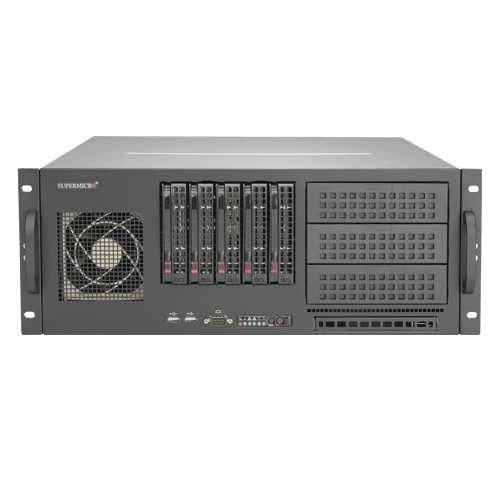

Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | •
Power LED • Hard drive activity LED • 2x Network activity LEDs • System information (overheat/UID) LED • Power Fail LED |
| Ports | •
2x USB 2.0 ports • 1x COM port |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 5x 3.5" Hot-swap Drive Trays |
| 90° Rotatable | • 3x 5.25" Peripheral Drive Trays |
|
Peripheral Bay
| |
|---|---|
| DVD-ROM |
• 1x slim DVD-ROM drive (optional) |
|
SAS/SATA Backplane
| |
|---|---|
|
• SAS / SATA Hard Drive Backplane w/AMI MG9072 |
|
|
System Cooling
| |
|---|---|
| Fans |
• 1x 92x38mm 4-pin PWM front intake fan |
|
Power Supply with Power Distributor
| |
|---|---|
| 600W Redundant Power Supplies with PMBus | |
| Total Output Power | • 600W |
| Dimension
(W x H x L) |
• 54.5 x 40 x 220 mm |
| Input | • 100-240V, 50-60Hz, 7.5-3.5A |
| +12V | • Max: 50A / Min: 0.5A |
| +5Vsb | • Max: 3A / Min: 0A |
| Output Type | • Gold Finger Connector Mating with Molex 45984-4343 |
| Certificaiton | • Platinum Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 6-Phase-switching voltage regulator |
| FAN |
• Total of eight fan headers supporting up to 8 fans • 8x fans with tachometer status monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • Thermal Monitor 2 (TM2) support • PECI |
| LED | • CPU / System Overheat LED • Suspend static indicator LED • UID/Remote LED |
| Other Features | • Chassis intrusion detection • Chassis intrusion header |
|
Operating Environment
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
