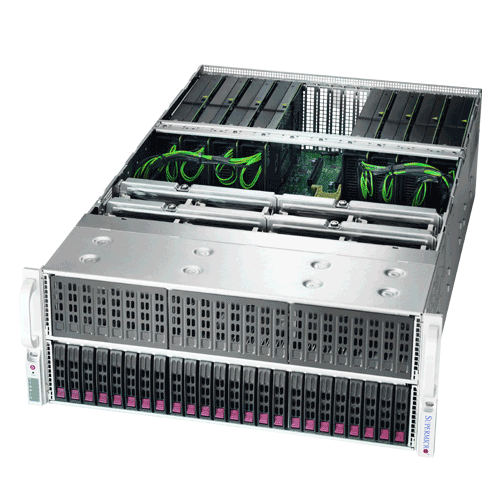

  • Supermicro 4U Rackmount SuperServer SYS-4028GR-TRT - Angle

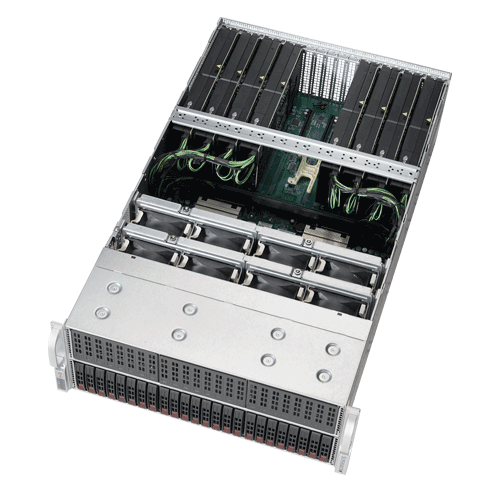

  • Supermicro 4U Rackmount SuperServer SYS-4028GR-TRT - Top

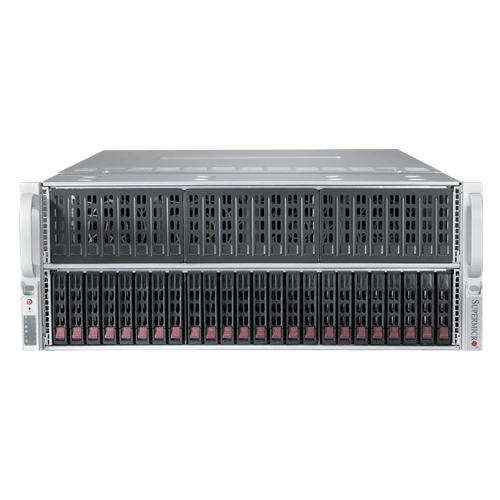

  • Supermicro 4U Rackmount SuperServer SYS-4028GR-TRT - Front
  • Supermicro 4U Rackmount SuperServer SYS-4028GR-TRT - Rrear

Supermicro 4U Rackmount SuperServer SYS-4028GR-TRT

Call for price.
SKU:SYS-4028GR-TRT

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 3TB† ECC 3DS LRDIMM; 24x DIMM slots
• Dual 10GBase-T LAN with Intel® X540
• 24 Hot-swap 2.5" drive bays
• 8 Hot-swap 92mm cooling fans
• 1600W Redundant (2+2) Power Supplies; Platinum Level (94%+)


Details

Supermicro SuperServer SYS-4028GR-TRT

Product SKU
• SuperServer 4028GR-TRT (Black)
Motherboard
  • Super X10DRG-OT+-CPU
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Note Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU/Xeon Phi
Support
• NVIDIA® Tesla® K10/K40/K80/M40/M60/Xeon Phi
System Memory
Memory Capacity • 24x 288-pin DDR4 DIMM slots
• Up to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• Dual Port 10GbE
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• ASPEED AST2400 BMC

Input/Output
SATA • 10 SATA3 (6Gbps) ports
LAN • 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 4 USB 3.0 ports
Video • 1 VGA Connector
Serial Port • 1 Serial header
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features • Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Chassis
Form Factor • 4U Rackmountable
• Rackmount Kit (MCP-290-00057-0N)
Model CSE-418GTS-R3200B
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.2" (437mm)
Depth • 29" (737mm)
Gross Weight • 100 lbs (45.3 kg)
Available Colors • Black
Drive Bays
Hot-swap

• 24 Hot-swap 2.5" hard drive bays

Expansion Slots
PCI-Express

• 8 PCI-E 3.0 x16 (double-width) slots
• 2 PCI-E 3.0 x8 (in x16) slots
• 1 PCI-E 2.0 x4 (in x16) slot

Backplane


• SAS/SATA HDD Backplane

System Cooling
Fans

• 8 Hot-swap 92mm cooling fans

Shrouds

• 1 Air Shroud (MCP-310-41808-0B)

Power Supply
  1600W 1U Redundant Power Supplies with PMBus
Total Output Power • 1000W/1600W
Dimension
(W x H x L)
• 73.5 x 40 x 265 mm
Input • 100-127Vac / 12.9A Max / 50-60Hz
• 200-240Vac / 9.5A Max / 50-60Hz
+12V • Max: 82A / Min: 0.1A (100-127Vac)
• Max: 132A / Min: 0.1A (200-240Vac)
12V SB • Max: 2A / Min: 0.2A
Output Type • 25 Pairs Gold Finger Connector
Certification • Platinum Level
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages
• 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V

FAN

• 4-pin fan headers with tachometer status monitoring
• Low noise fan speed control mode

Temperature

• Monitoring for CPU and system environment
• Thermal Control for 8 fan connectors

Other Features

• Chassis intrusion detection

Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
