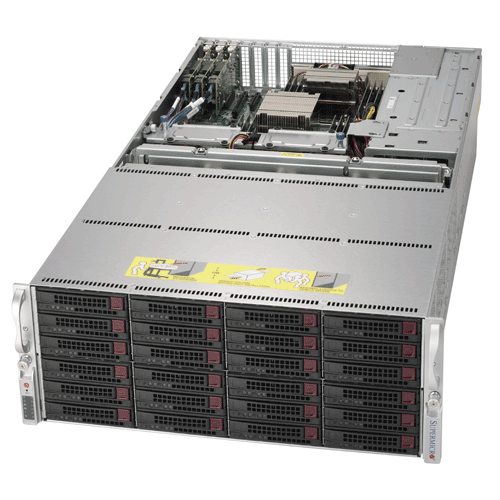

  • Supermicro 4U Rackmount SuperServer SSG-6048R-E1CR72L - Angle

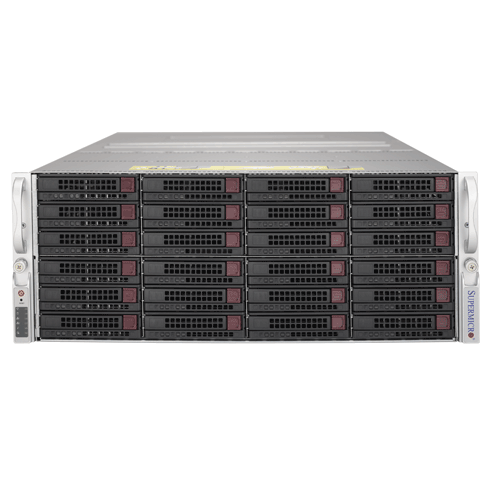

  • Supermicro 4U Rackmount SuperServer SSG-6048R-E1CR72L - Front

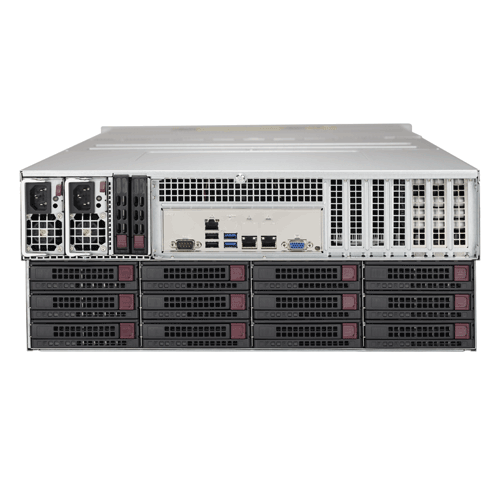

  • Supermicro 4U Rackmount SuperServer SSG-6048R-E1CR72L - Rear

Supermicro 4U Rackmount SuperServer SSG-6048R-E1CR72L

Call for price.
SKU:SSG-6048R-E1CR72L

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM slots
• Dual 10GBase-T LAN w/ Intel® X540
• SAS3 via 3x Broadcom 3008 controller; IT mode
• 7x 80mm middle cooling fans
• 2000W High efficiency (96%) Redundant PSU; Titanium Level


Details

Supermicro SuperStorage SSG-6048R-E1CR72L (Complete System Only)

Product SKU
• SuperServer 6048R-E1CR72L (Black)
Motherboard
  • Super X10DRH-iT
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Note Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices
Chipset • Intel® C612 chipset
SAS • SAS3 (12Gbps) via 3x Broadcom 3008 (AOC)
• IT mode firmware
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® X540 Dual Port 10GbE
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Realtek RTL8201N PHY (dedicated IPMI)

Graphics • ASPEED AST2400 BMC
Input/Output
Serial ATA • 6 SATA3 (6Gbps) ports
LAN • 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
• 2 USB 2.0 ports (rear)
• 1 Type A
VGA • 1 VGA port
Serial Port/Header






















• 1 Fast UART 16550 port / 1 Header






















Chassis
Form Factor • 4U Rackmount
Model CSE-847DTS-R2K04LPB1
Dimension and Weight
Width • 17.2" (437mm)
Height • 7" (178mm)
Depth • 35" (889mm)
Gross Weight • 67 lbs (30.4 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power status LED
• Hard drive activity LED
• 2 Network activity LEDs
• System Overheat LED
• Power fail LED
Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
• 3 slots occupied by IT Mode disk controller, Broadcom 3008

Drive Bays
Hot-swap

• 72x 3.5" Hot-swap SAS3/SATA3 drive bays with SES2
• Double-sided storage
• 72x 3.5" Hot-swap SAS3/SATA3 drive bays with SES2 ##Double-sided storage ##2x 2.5" Hot-swap SATA drive bays (rear)

Fixed • 2x 2.5" Fixed bays
Backplane


• SAS3/SATA3 single expander per backplane

System Cooling
Fans

• 7x 92mm hot-swap cooling fans

Power Supply (76mm Width)
  2000W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
• 76 x 40 x 336 mm
Input • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V • Max: 83.3A / Min: 0A (100-127 Vac)
• Max: 150A / Min: 0A (200-220 Vac)
• Max: 165A / Min: 0A (220-230 Vac)
• Max: 166.7A / Min: 0A (230-240 Vac)
• Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb • Max: 1A / Min: 0A
Output Type • 27 Pairs Gold Finger Connector
Certification • Titanium Level
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
