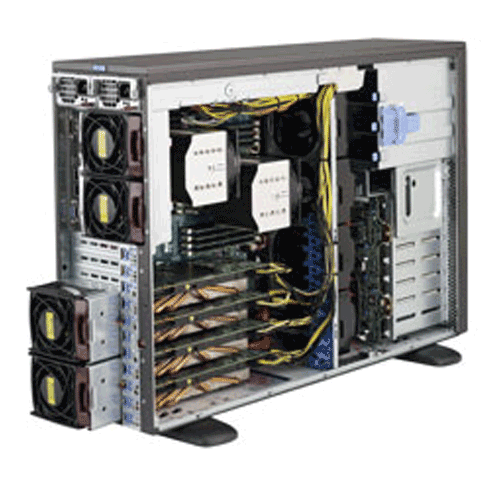

  • Supermicro 4U GPU Rackmountable SuperWorkstation SYS-7047GR-TPRF

Supermicro 4U GPU Rackmountable SuperWorkstation SYS-7047GR-TPRF

Call for price.
SKU:SYS-7047GR-TPRF

Quick Overview:

Key Features:
• 4U Rackmountable/Tower
• Dual socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB ECC DDR3; 16x DIMM slots
• 8x 3.5" Hot-swap, 3x Fixed 5.25" and 1x Fixed 3.5" Drive Bays
• 4x Heavy Duty Fans, 4x Exhaust Fans, and 2x Active Heatsink
   with Optimal Fan Speed Control
• 1620W Redundant Power Supplies Platinum Level (94%)


Details

Supermicro 4U GPU Rackmountable SuperWorkstation SYS-7047GR-TPRF

Product SKU
• SuperServer 7047GR-TPRF (Black)
Motherboard
  • Super X9DRG-QF
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 150W TDP)
• Dual Socket R (LGA 2011)
Cache • Up to 20MB
System Bus • QPI up to 8 GT/s
Note † BIOS version 3.0 or above is required
GPU/Xeon Phi
Support
• M2075/FC475, up to 150W CPU at 35°C
• M2090, up to 150W CPU at 30°C
• K10/K20/K20X/K1/K2 (Kepler), up to 150W CPU at 35°C
• K40 (Atlas), up to 150W CPU at 35°C
• Xeon Phi, up to 150W CPU at 30°C
System Memory
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset • Intel® C602 Chipset
SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Renesas SH7757 BMC
Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Video

• Matrox G200eW

Input/Output
SATA • 2x SATA 3.0 ports (6Gbps)
• 8x SATA 2.0 ports (3Gbps)
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A)
Video • 1x VGA port
Serial Port/Header • 1x Fast UART 16550 port / 1 Header
Expansion Slots
PCI-Express • ##128Mb SPI Flash EEPROM with AMI® BIOS
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features • Plug and Play (PnP)
• APM 1.2
• DMI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit
Model CSE-747BTQ-R1K62B
Dimension and Weight
Height • 18.2" (462mm)
Width • 7.0" (178mm)
Depth • 26.5" (673mm)
Gross Weight • 62 lbs (28.1kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat & Power Fail LED

Ports

• 2x Front USB 2.0 Ports

Drive Bays
Hot-swap

• 8x 3.5" Hot-swap SAS/SATA Drive Trays

Peripheral Bay(s)

• 3x 5.25" drive bays in storage module - rotates 90° for Rackmount
• 1x 3.5" fixed drive bay

SAS / SATA Backplane


• SAS / SATA Hard Drive Backplane with SES2

System Cooling
Fans

• 4x 92x38mm 4-pin PWM Middle Cooling Fans
• 4x 80x38mm 4-pin PWM Rear Exhaust Fans

Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
• 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 6-Phase-switching voltage regulator

FAN

• Total of eight fan headers supporting up to 8 fans
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header

Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
