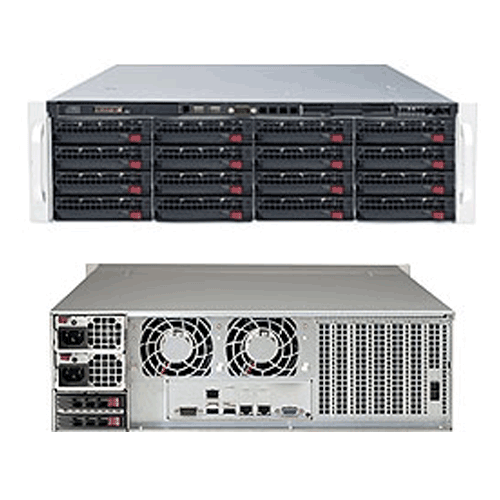

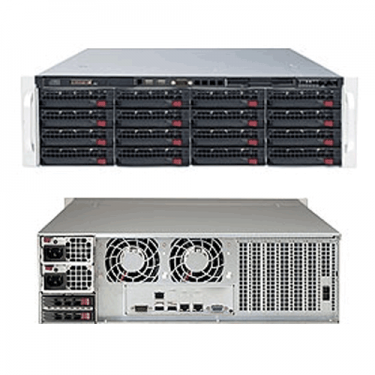

Supermicro SuperStorage SSG-6038R-E1CR16H
Product SKU |
|
---|---|
SSG-6038R-E1CR16H | • SuperServer 6038R-E1CR16H (Black) |
Motherboard |
|
---|---|
Super X10DRH-iT |
Processor/Cache |
|
---|---|
CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011) |
Cores / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
System Bus | • QPI up to 9.6 GT/s |
† BIOS version 2.0 or above is required | |
Note | Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
---|---|
Memory Capacity | • 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
Memory Voltage | • 1.2 V |
Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
---|---|
Chipset | • Intel® C612 chipset |
SAS | • SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID • RAID 0, 1, 5, 6, 10, 50, 60 |
SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
Network Controllers |
• Dual 10GBase-T LAN with Intel® X540 Ethernet Controller • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Realtek RTL8201N PHY (dedicated IPMI) |
Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
---|---|
LAN | • 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port |
USB | • 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) • 1 Type A |
VGA | • 1 VGA port |
Serial Port / Header |
• 1 Fast UART 16550 port / 1 Header |
Chassis |
|
---|---|
Form Factor | • 3U Rackmount |
Model | • CSE-836BE1C-R920B |
Dimension & Weight |
|
---|---|
Width | • 17.2" (437mm) |
Height | • 5.2" (132mm) |
Depth | • 25.5" (648mm) |
Gross Weight | • Gross Weight: 79 lbs (35.8 kg) |
Available Colors | • Black |
Front Panel |
|
---|---|
Button | • Power On/Off button • System Reset button |
LEDs | • Power status LED • Hard drive activity LED • 2 Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slots |
|
---|---|
PCI-Express | • 1 PCI-E 3.0 x16 slot • 6 PCI-E 3.0 x8 slots • Slot 1 & 2 occupied by controller and JBOD Expansion Port |
Drive Bays |
|
---|---|
Hot-Swap | • 16x 3.5" Hot-swap SAS3/SATA3 drive bays |
Optional | • 2x 2.5" optional rear Hot-swap SATA drive bays |
Backplane |
|
---|---|
• SAS3 12Gbps single expander backplane, w/ 16x SAS3 3.5" drive slots and 2x mini-SAS HD connectors for JBOD expansion |
System Cooling |
|
---|---|
Fans | • 2x 80mm hot-swap rear exhaust cooling fans • Redundant cooling |
Power Supply with Power Distributor |
|
---|---|
• 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
DC Output | • 4 Amp @ +5V standby • 75 Amp @ +12V |
Certification | • Platinum Certified |
System BIOS |
|
---|---|
BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
BIOS Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
