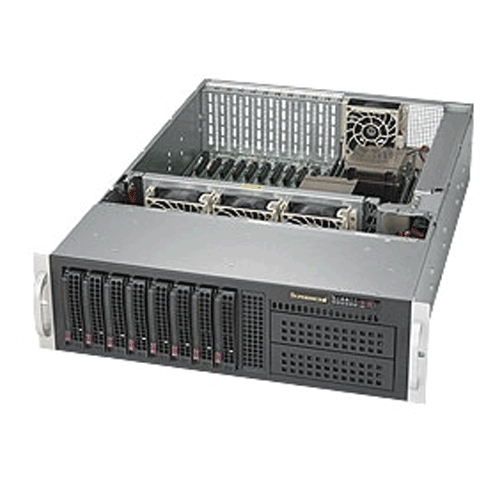

Supermicro SuperServer SYS-6038R-TXR
Product SKU |
|
|---|---|
| SYS-6038R-TXR | • SuperServer 6038R-TXR (Black) |
Motherboard |
|
|---|---|
| Super X10DRX | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| † BIOS version 2.0 or above is required | |
| Note | * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
|---|---|
| Memory Capacity | • 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers |
• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| Serial ATA | • 10x SATA3 (6Gbps) ports |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 5x USB 3.0 ports (2 rear, 2 via header, 1 Type A) • 4x USB 2.0 ports (2 rear, 2 via headers) |
| Serial Port / Header | • 2x COM ports (1 rear, 1 Header) |
| VGA | • 1x VGA port |
| DOM | • 2x SuperDOM (Disk on Module) ports |
| TPM | • 1x TPM 1.2 20-pin Header |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Chassis |
|
|---|---|
| Form Factor | • 3U Rackmount |
| Model | • CSE-835XTQ-R982B |
Dimension & Weight |
|
|---|---|
| Width | • 17.2" (437mm) |
| Height | • 5.2" (132mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 72 lbs (32.6kg) |
| Available Colors | • Black |
Front Panel |
|
|---|---|
| Button | • Power On/Off button • System Reset button |
| LEDs | • Power status LED • Hard drive activity LED • 2x Network activity LEDs • System information (overheat/UID) LED • Power fail LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 10x PCI-E 3.0 x8 slots • 1x PCI-E 2.0 x4 (in x8) slot |
| (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.) | |
Drive Bays |
|
|---|---|
| Hot-Swap | • 8x 3.5" Hot-swap drive bays |
| Others | • 2x 5.25" drive bays |
Peripheral Bay |
|
|---|---|
| Peripheral Bay | • 1x slim DVD-ROM drive (optional) |
Backplane |
|
|---|---|
| • 1x SAS2 / SATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 3x 8cm 7K RPM, Middle fans • 1x 8cm 6.7K RPM, Rear Exhaust fan |
Power Supply with Power Distributor |
|
|---|---|
| • 850W/980W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus | |
| AC Input | • 100-140 V, 50-60 Hz, 11.5-6.5 Amp • 180-240 V, 50-60 Hz, 6.5-4.5 Amp |
| DC Output | • 4 Amp @ +5V Standby • 70 Amp @ +12V (100-140Vac) • 81 Amp @ +12V (180-240Vac) |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 28 Amp • -12V: 0.6 Amp |
| Certification | • Platinum Level |
System Bios |
|
|---|---|
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • Plug and Play (PnP) • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • BIOS rescue hot keys • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
