Details
Product SKU
| |
---|---|

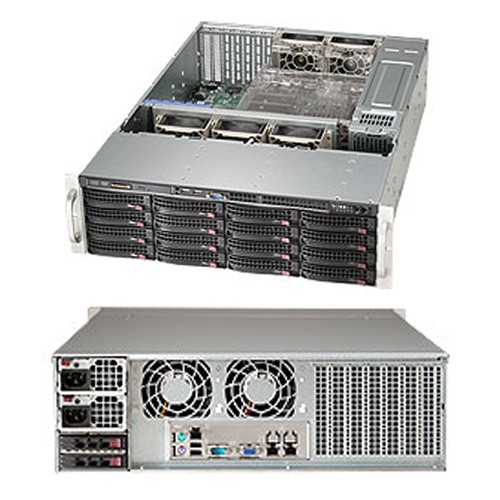

CSE-836BE1C-R1K23B | • SuperChassis 836BE1C-R1K23B |
Form Factor
| |
---|---|
• 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX |
Processor Support
|
|
---|---|
• Dual and Single Intel® and AMD processors |
Dimensions
| |
---|---|
Height | • 5.2" (132 mm) |
Width | • 17.2" (437 mm) |
Depth | • 25.5" (647 mm) |
Gross Weight | • 72 lbs (32.66 kg) |
Available Color | • Black |
Expansion Slots
| • 7 full-height & full-length expansion slot(s) |
---|
Drive Bays
| • 16 x 3.5" hot-swap SAS/SATA drive bay with SES2 • Optional 2 x 2.5" hot-swap drive bay |
---|
Backplane
| • 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD |
---|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
LEDs |
• 2 Network Activity LEDs • HDD activity LED • Power Status LED • Power Fail LED • System Information LED |
---|
Motherboard (for CSE- 836BE1C-R1K23B)
| |
---|---|
• X11SPH-nCTF • X11SPH-nCTPF • X11DPH-I • H11DSi • H11DSI-NT • X11DPH-T • X11DPH-TQ |
Servers (for CSE- 836BE1C-R1K23B)
| |
---|---|
• 6039P-E1CR16H • 6039P-E1CR16L |
System Cooling
| |
---|---|
Fans | • 3 x 8cm hot-swap redundant PWM cooling fan(s) |
System Monitoring
| |
---|---|
• Chassis intrusion switch |
Operating Environment (System)
| |
---|---|
Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
Power Supply
| |
---|---|
• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
|
Power Efficiency | • 96% |
Total Output Power and Input |
• 1000W with Input 100 - 127Vac |
AC Input Frequency |
• 50-60Hz |
Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
Output Type | • Backplanes (gold finger) |
+12V | • Max: 83A (100Vac - 127Vac) |
+5Vsb | • Max: 4A / Min: 0A |
Power Distributor | • PDB-PT826-8824 |
Certification | • Titanium Certified |
Regulatory (Power Supply)
| |
---|---|
Power Supply Safety / EMC |
• BSMI |
