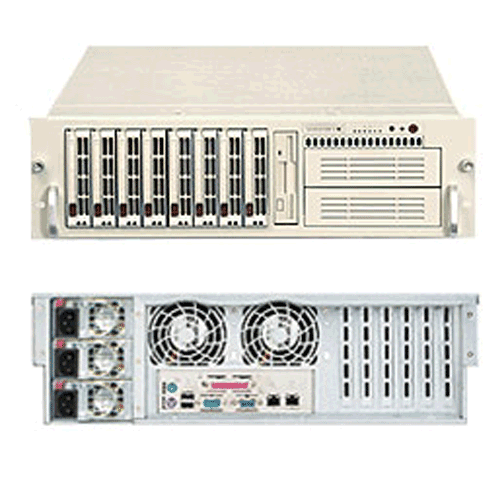

SuperServer SYS-6033P-8R / SYS-6033P-8RB 3U Rackmount
Supermicro SYS-6033P-8R / SYS-6033P-8RB 3U Rackmount SuperServer with Triple-Redundant 760W power supply,Intel® E7501 chipset, 8 x 3.5" hot-swap Ultra320/160 SCSI Drive
Bays using Supermicro Super X5DP8-G2 Server Motherboard and SC832S-R760 Server chassis.
Bays using Supermicro Super X5DP8-G2 Server Motherboard and SC832S-R760 Server chassis.
Product SKU |
|
|---|---|
| SYS-6033P-8R | • SuperServer 6033P-8R (Beige) |
| SYS-6033P-8RB | • SuperServer 6033P-8RB (Black) |
Motherboard |
|
|---|---|
| Super X5DP8-G2 | |
Processor/Cache |
|
|---|---|
| CPU | • Dual mPGA604 ZIF Sockets • Supports up to two Intel® Xeon® processor(s) with 1MB integrated Advanced Transfer Cache up to 3.20GHz |
| System Bus | • 533MHz/400MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity | • Eight 184-pin DIMM sockets • Supports up to 16 GB DDR266/200 memory • Dual channel memory bus • Memory must be populated in pair |
| Memory Type | • DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Size | • 256 MB, 512 MB, 1GB, 2GB |
| Memory Voltage | • 2.5 V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7501 chipset • MCH + ICH3-S + P64H2 |
| SCSI | • Adaptec AIC-7902 Controller |
| RAID | • Support for Zero-Channel RAID w/ ZCR Card (Card NOT included) |
| IPMI | • Support for Intelligent Platform Management Interface v.1.5 (Optional) |
| Network Controllers | • Dual Intel® 82546EB Gigabit Ethernet |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Input/Output |
|
|---|---|
| PCI | • Max 2x 64-bit 133MHz PCI-X (3.3V) slots
Default: • 3x 64-bit 100/66MHz PCI-X (3.3V) slot • 3x 64-bit 66MHz PCI-X (3.3V) slots • 1x VXB (Virtual Extended Bus) slot |
| IDE | • Dual EIDE channels support up to four UDMA IDE devices |
| USB | • Up to 5 USB ports |
| Serial Ports | • 2 Fast UART 16550 serial ports |
| Parallel Ports | • 1 ECP/EEP parallel port |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
System Bios |
|
|---|---|
| Bios Type | • BIOS Type 4Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP) |
Chassis |
|
|---|---|
| Form Factor | • 3U Rackmountable Tower |
| Model | • SC832S-R760 |
Dimension and Weight |
|
|---|---|
| Height | • 5.2" (132mm) |
| Width | • 17.7" (450mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 75 lbs (34.1kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power Fail LED |
Drive Bays |
|
|---|---|
| Hot-swap | • 8x 3.5"SCA Ultra320/160 Hot-swap Drives |
| Peripheral Bay(s) | • 2x 5.25" Peripheral Drive Bay |
SCSI Backplane |
|
|---|---|
| • 1x SCA-833S Ultra320/160 Backplane (with SAF-TE) | |
System Cooling |
|
|---|---|
| Fans | • 4x 9.2cm 4300 RPM Fan |
Power Suplly |
|
|---|---|
| 760W Triple-redundant AC power supply w/ PFC | |
| AC Voltage | • 100 - 240V, 50/60Hz, 12 Amp |
| DC Output | • 5V + 3.3V ≤ 200W |
| +5V | • 36.0 Amp |
| +5V standby | • 3.5 Amp |
| +12V | • 50.0 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 30.0 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, 3.3V Standby • CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V • Adjustable CPU clock frequency ratio settings (via BIOS) |
| FAN | • Total of seven 3-pin fan headers |
| Temperature | • Monitoring for CPU, chassis, environment • CPU thermal trip support |
| LED | • CPU Overheat LED • System Overheat LED • Suspend-state indicator LED |
| Other Features | • Chassis intrusion detection • Chassis intrusion header • Chipkill support |
