Details

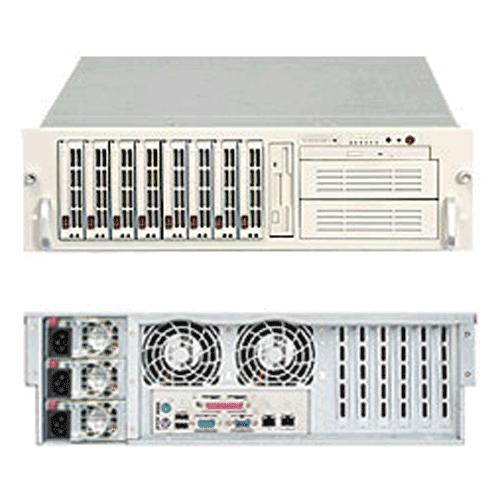

Supermicro Super X7DB8 Server Motherboard and SC833S2-R760 Server chassis.
Product SKU |
|
---|---|
SYS-6035B-8R | • SuperServer 6035B-8R (Beige) |
SYS-6035B-8RB | • SuperServer 6035B-8RB (Black) |
Motherboard |
|
---|---|
Super X7DB8 |
Processor/Cache |
|
---|---|
CPU | • Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz • NOTE: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors |
System Bus | • 1333 / 1066 / 667 MHz system bus |
OS Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
---|---|
Memory Capacity | • Eight 240-pin DIMM sockets • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs • Memory must be populated in pairs |
Memory Type | • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Size | • 512 MB, 1GB, 2GB, 4GB |
Memory Voltage | • 1.8V only • 1.5V(AMB) |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® 5000P (Blackford) chipset • MCH + PXH + ESB2 |
SATA | • Intel ESB2 SATA 3.0Gbps Controller |
SCSI | • Adaptec AIC-7902 Controller |
RAID | • Support for Zero-Channel RAID |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI slot (Optional: AOC-SIMLC) |
Network Controllers | • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller |
Graphics | • ATI ES1000 controller with 16 MB of video memory |
Super I/O | • Winbond 83627HG chip |
Input/Output |
|
---|---|
Serial ATA | • Six Serial ATA ports • Six SATA hard drives supported |
IDE | • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card |
Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
LAN | • 2x RJ45 LAN ports |
USB | • 2x USB rear ports • 3x USB internal headers • Total 5 USB 2.0 Compliant / 1.1 Compliant |
VGA | • 1x VGA Port |
Keyboard/Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header |
Parallel Port | • 1 ECP / EEP parallel port |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
Bios Features | • Plug and Play (PnP) |
Chassis |
|
---|---|
Form Factor | • 3U Rackmount |
Model | • SC833S2-R760 |
Dimension and Weight |
|
---|---|
Height | • 5.2" (132mm) |
Width | • 17.2" (437mm) |
Depth | • 25.5" (648mm) |
Gross Weight | • 73 lbs (33.1 kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED |
• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
pORTS | • 2x USB Ports & DB9 COM Port |
Expansion Slot |
|
---|---|
PCI-Express |
• 2 (x8) PCI-e slots • 1 (x4) PCI-e (using x8) slot |
PCI-X |
• 2x 64-bit 133MHz PCI-X (3.3V) slots • 1x 64-bit 100MHz PCI-X (3.3V) slot |
Drive Bays |
|
---|---|
Hot-swap | • 8x 3.5"SCA Ultra320/160 Hot-swap Drives |
Peripheral Bay(s) | • 3x 5.25" Peripheral Drive Bay • 1x 5.25" Bay For Floppy Drive |
Peripheral Drives |
|
---|---|
DVD-ROM | • Panasonic 8x DVD, 24x CD, DVD-ROM Drive |
Floppy | • TEAC 3.5" 1.44MB Floppy Drive (beige / black) |
SCSI Backplane |
|
---|---|
• Dual Channel SCSI Backplane w/ Enclosure Managmement (SAF-TE) |
System Cooling |
|
---|---|
Fans |
• 4x 9cm 5,000 RPM Hot-swappable Fans • 2x 8cm 5,000 RPM Rear Exhaust Fans |
Shroud | • 1x Air Shroud |
Power Suplly |
|
---|---|
760W Triple-Redundant AC to DC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ] | |
AC Voltage | • 100 - 240V, 50-60Hz, 14 - 8 Amp |
DC Output | • 5V + 3.3V ≤ 200W |
+5V | • 36.0 Amp |
+5V standby | • 3.5 Amp |
+12V | • 50.0 Amp (combined) |
-12V | • 1.0 AAmp |
+3.3V | • 36.0 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
FAN | • Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support |
LED | • CPU / System Overheat LED |
Other Features | • Chassis intrusion detection • Chassis intrusion header • SDDC Support |
Operating Environment / Compliance |
|
---|---|
Environmental Spec. |
• Operating Temperature: 10°to 35°C (50°to 95°F)
|
