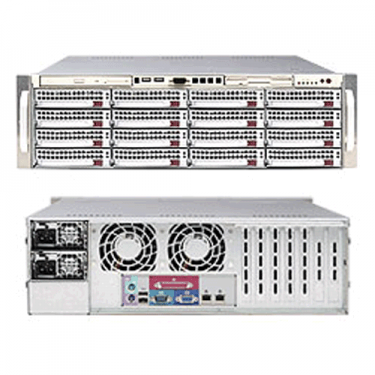

Supermicro 3U Rackmount Server SYS-6035B-8R+V

Call for price.

SKU:SYS-6035B-8R+V

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 /
   1333 MHz FSB
• Up to 64GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• 2 (x8) & 1 (x4) PCI-Express,
   2x 64-bit 133MHz PCI-X,
   1x 64-bit 100MHz PCI-X
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• Zero Channel RAID Support
• Dual-Channel U320 SCSI with 16 (8+8) Hot-swap Drive
• 800W Redundant Power Supply

Description

Details

SuperServer SYS-6035B-8R+V / SYS-6035B-8R+B 3U Rackmount

Supermicro SYS-6035B-8R+V / SYS-6035B-8R+B 3U Rackmount SuperServer with 800W Redundant Power Supply,Intel® 5000P (Blackford) chipset, 16x 3.5" U320 SCSI Hot-swap
drive trays using Supermicro Super X7DB8+ Server Motherboard and SC836S2-R800V Server chassis.

Product SKU
SYS-6035B-8R+V	• SuperServer 6035B-8R+V (Silver)
SYS-6035B-8R+B	• SuperServer 6035B-8R+B (Black)

Motherboard
	Super X7DB8+

Processor/Cache
CPU	• Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz • NOTE: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
System Bus	• 1333 / 1066 / 667 MHz system bus
OS Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory
Memory Capacity	• Sixteen 240-pin DIMM sockets • Supports up to 64 GB 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs • Memory Mirroring supported
Memory Type	• 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Size	• 512 MB, 1GB, 2GB, 4GB
Memory Voltage	• 1.8V only • 1.5V(AMB)
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5000P (Blackford) chipset • MCH + PXH + ESB2
SCSI	• Adaptec AIC-7902 Controller • Dual-Channel Ultra320 SCSI (Host RAID supports up to 4 drives) • Host RAID 0, 1, & 10 support
RAID	• Support for Zero-Channel RAID • Optional: (Card not included) • RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI slot (SIMLP) • (Optional: AOC-SIMLP-B) • (Optional: AOC-SIMLP-3) with 3rd LAN support
Network Controllers	• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	• ATI ES1000 controller with 16 MB of video memory
Super I/O	• Winbond 83627HG chip

Input/Output
IDE	• Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card • Compact Flash (40-pin connector, IDE 1, single channel) slot • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB, 2.88 MB
LAN	• 2x RJ45 LAN ports
USB	• 2x USB rear ports • 3x USB internal headers • Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA	• 1x VGA Port
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header
Parallel Port	• 1 ECP / EEP parallel port

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.1 • PCI 2.2 • ACPI 1.0 • USB Keyboard support • Hardware BIOS Virus protection

Chassis
Form Factor	• 3U Rackmount
Model	• SC836S2-R800V

Dimension and Weight
Height	• 5.2" (132mm)
Width	• 17.2" (437mm)
Depth	• 25.5" (648mm)
Gross Weight	• 78 lbs (35.4 kg)
Available Color	• Silver,Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED
pORTS	• 2x USB Ports & DB9 COM Port

Drive Bays
Hot-swap	• 16x 3.5" U320 SCSI Hot-swap drive trays with SAF-TE

Peripheral Drives
DVD-ROM	• 8x DVD, 24x CD, DVD-ROM Drive

SCSI Backplane
	• Dual Channel SCSI Backplane w/ Enclosure Managmement (SAF-TE)

System Cooling
Fans	• 3x 80mm Hot-swappable Fans • 2x 80mm Rear-exhaust Fans
Shroud	• 1x Air Shroud

Power Suplly and Distributor
	800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage	• 100 - 240V, 50-60Hz, 10-4 Amp
+5V standby	• 4 Amp
+12V	• 66 Amp
With Power Distributor	• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	• Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans • 8x fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support
LED	• CPU / System Overheat LED
Other Features	• Chassis intrusion detection • Chassis intrusion header • SDDC Support

Operating Environment / Compliance
Environmental Spec.	• Operating Temperature: 10°to 35°C (50°to 95°F) • Non-operating Temperature: -40°to 70°C (-40°to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Operating Environment / Compliance

Environmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
