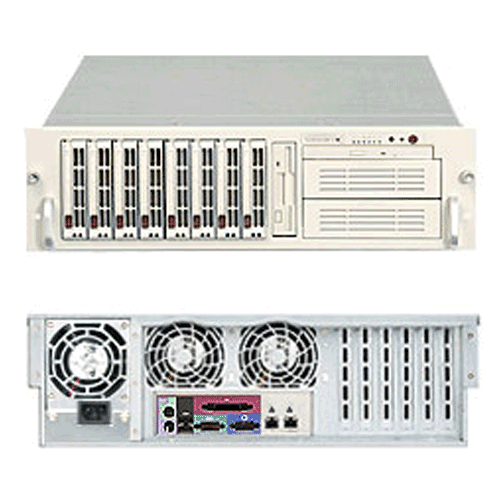

Supermicro 3U Rackmount Server SYS-6035B-8B

More Views

  • Supermicro 3U Rackmount Server SYS-6035B-8B

Supermicro 3U Rackmount Server SYS-6035B-8B

Call for price.
SKU:SYS-6035B-8B

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 /
  1333 MHz FSB
• Up to 32GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• 2 (x8) & 1 (x4) PCI-Express,
  2x 64-bit 133MHz PCI-X,
  1x 64-bit 100MHz PCI-X
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• Zero Channel RAID Support
• Dual-Channel U320 SCSI with 8 (4+4) Hot-swap Drive
• 550W Power Supply


Details

SuperServer SYS-6035B-8 / SYS-6035B-8B 3U Rackmount

Supermicro SYS-6035B-8 / SYS-6035B-8B 3U Rackmount SuperServer with 550W power supply with PFC,Intel® 5000P (Blackford) chipset, 8x 3.5"SCA Ultra320/160 Hot-swap Drives
usingSupermicro Super X7DB8 Server otherboard and SC833S2-550 Server chassis.

Product SKU
SYS-6035B-8 • SuperServer 6035B-8 (Beige)
SYS-6035B-8B • SuperServer 6035B-8B (Black)
Motherboard
        Super X7DB8
Processor/Cache
CPU • Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz
• NOTE: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
System Bus • 1333 / 1066 / 667 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM sockets
• Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
• Memory must be populated in pairs
Memory Type • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Size • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8V only
• 1.5V(AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset • Intel® 5000P (Blackford) chipset
• MCH + PXH + ESB2
SATA

• Intel ESB2 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
SCSI

• Adaptec AIC-7902 Controller
• Dual-Channel Ultra320 SCSI (Host RAID supports up to 4 drives)
• Host RAID 0, 1, & 10 support
RAID

• Support for Zero-Channel RAID
• Optional: (Card not included)
• RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI slot (Optional: AOC-SIMLC)
Network Controllers

• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics

• ATI ES1000 controller with 16 MB of video memory
Super I/O • Winbond 83627HG chip
Input/Output
Serial ATA • Six Serial ATA ports
• Six SATA hard drives supported
IDE

• Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Compact Flash (40-pin connector, IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB
LAN • 2x RJ45 LAN ports
USB • 2x USB rear ports
• 3x USB internal headers
• Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA • 1x VGA Port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Port / Header • 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header
Parallel Port • 1 ECP / EEP parallel port
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
• Hardware BIOS Virus protection
Chassis
Form Factor • 3U Rackmount
Model • SC833S2-550
Dimension and Weight
Height • 5.2" (132mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 67 lbs (30.4 kg)
Available Color • Beige,Black
Front Panel
Buttons • Power On/Off button
• System Reset button
• Alarm Mute Switch
LED • Power LED
• Network activity LED
• System Overheat LED
Ports • (Optional front USB ports via 5.25" Drive bay)
Expansion Slot
PCI-Express • 2 (x8) PCI-e slots
• 1 (x4) PCI-e (using x8) slot
PCI-X • 2x 64-bit 133MHz PCI-X (3.3V) slots
• 1x 64-bit 100MHz PCI-X (3.3V) slot
Drive Bays
Hot-swap • 8x 3.5"SCA Ultra320/160 Hot-swap Drives
Peripheral Bay(s)  • 2x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive
Peripheral Drives
DVD-ROM • Panasonic 8x DVD, 24x CD, DVD-ROM Drive
Floppy • TEAC 3.5" 1.44MB Floppy Drive (beige / black)
SCSI Backplane
  • Dual Channel SCSI Backplane w/ Enclosure Managmement (SAF-TE)
System Cooling
Fans • 4x 9cm 5,000 RPM Hot-swappable Fans
• 2x 8cm 5,000 RPM Rear Exhaust Fans
Shroud • 1x Air Shroud
Power Suplly
  550W power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ]
AC Voltage • 100 - 240V, 47-63Hz, 9/3.5 Amp
DC Output • +5V & +3.3V : Max = 50A
+5V • 35.0 Amp
+5V standby • 2.0 Amp
+12V • 42.0 Amp (combined)
-12V • 1.0 AAmp
+3.3V • 30.0 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN

• Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
LED • CPU / System Overheat LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC Support
Operating Environment / Compliance
Environmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
