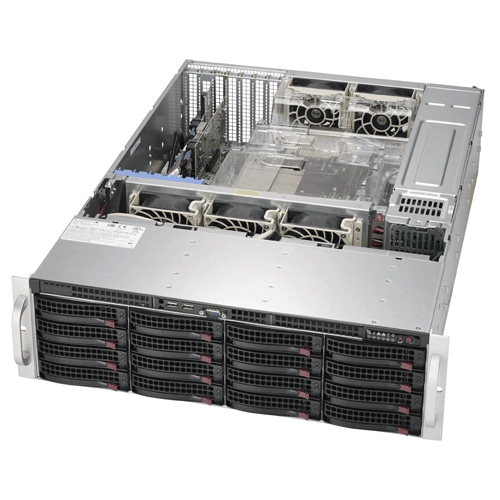

Supermicro SuperStorage SSG-6038R-E1CR16L
Product SKU |
|
|---|---|
| SSG-6038R-E1CR16L | • SuperServer 6038R-E1CR16L (Black) |
Motherboard |
|
|---|---|
| Super X10DRH-iT | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011) |
| Cores / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| † BIOS version 2.0 or above is required | |
| Note | * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
|---|---|
| Memory Capacity | • 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SAS | • SAS3 (12Gbps) via Broadcom 3008, IT mode |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers |
• Dual 10GBase-T LAN with Intel® X540 Ethernet Controller • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| LAN | • 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) • 1 Type A |
| VGA | • 1 VGA port |
| Serial Port / Header |
• 1 Fast UART 16550 port / 1 Header |
Chassis |
|
|---|---|
| Form Factor | • 3U Rackmount |
| Model | • CSE-836BE1C-R920B |
Dimension & Weight |
|
|---|---|
| Width | • 17.2" (437mm) |
| Height | • 5.2" (132mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 79 lbs (35.8 kg) |
| Available Colors | • Blak |
Front Panel |
|
|---|---|
| Button | • Power On/Off button • System Reset button |
| LEDs | • Power status LED • Hard drive activity LED • 2 Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 1 PCI-E 3.0 x16 slot • 3 PCI-E 3.0 x8 slots • Slot 3 & 4 occupied by controller and JBOD Expansion Port |
Drive Bays |
|
|---|---|
| Hot-Swap | • 16x 3.5" Hot-swap SAS3/SATA3 Drive Bays |
| Optional | • 2x 2.5" optional rear Hot-swap SATA drive bays |
Backplane |
|
|---|---|
| • SAS3 12Gbps single expander backplane, w/ 16x SAS3 3.5" drive slots and 2x mini-SAS HD connectors for JBOD expansion | |
System Cooling |
|
|---|---|
| Fans | • 2x 80mm hot-swap rear exhaust cooling fans • Redundant cooling |
Power Supply with Power Distributor |
|
|---|---|
| • 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | • 4 Amp @ +5V standby • 75 Amp @ +12V |
| Certification | • Platinum Certified |
System BIOS |
|
|---|---|
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
