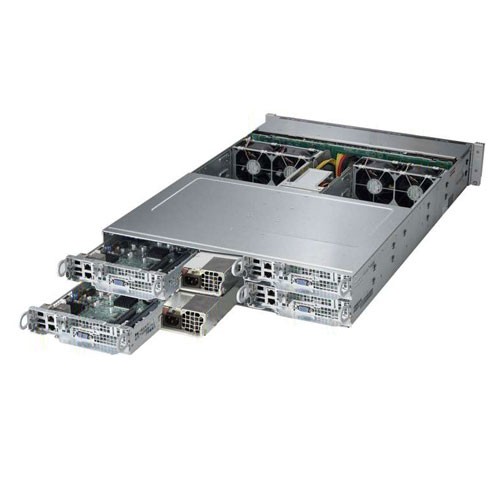

  • Supermicro 2U Rackmount SYS-6028TP-HC0TR - Angle

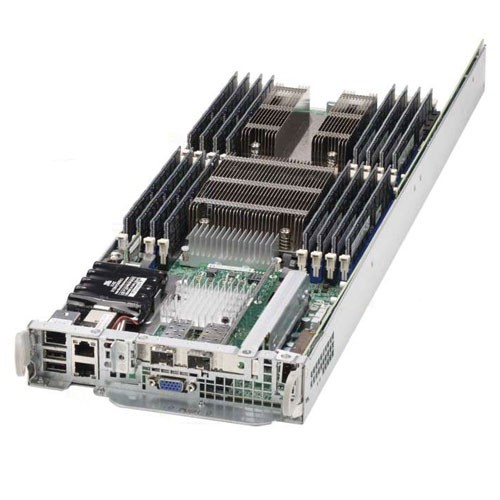

  • Supermicro 2U Rackmount SYS-6028TP-HC0TR - Node

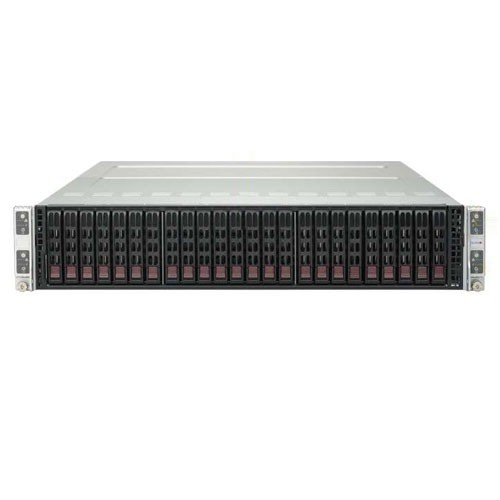

  • Supermicro 2U Rackmount SYS-6028TP-HC0TR - Front

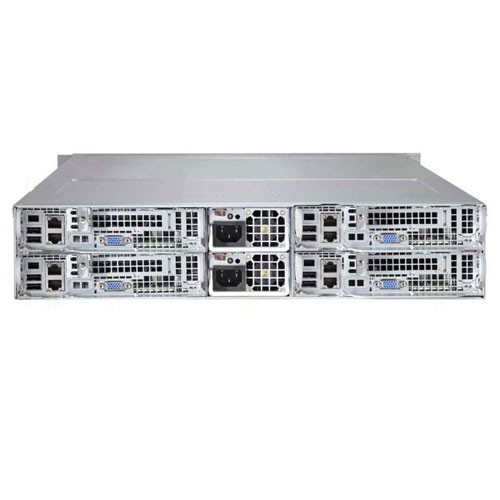

  • Supermicro 2U Rackmount SYS-6028TP-HC0TR - Rear

Supermicro 2U TwinPro2 Rackmount SuperServer SYS-6028TP-HC0TR

Call for price.
SKU:SYS-6028TP-HC0TR

Quick Overview:

Key Features:
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 1x PCI-E 3.0 x16 Low-profile slot; 1x "0 slot" (x16)
• Intel® X540 Dual port 10GBase-T
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 3x 3.5" Hot-swap SAS/SATA HDD Bays
• LSI 3008 SAS3 controller (8 ports); RAID 0, 1, 10
• Mini-mSATA (half size) support
• 2000W Redundant Power Supplies Titanium Level (96%)


Details

Superworkstation SYS-6028TP-HC0TR

Supermicro SYS-6028TP-HC0TR 2U Rackmount Barebone with 2000W Redundant Power Supplies, Intel® C612 chipset support 3x 3.5" Hot-swap SAS/SATA HDD Bays using
Supermicro Super X10DRT-PT Server motherboard and CSE-827HQ+-R2K04B 2U Rackmount Chassis.
Product SKU
• SuperServer 6028TP-HC0TR (Black)
Motherboard
        Super X10DRT-PT
Processor/Cache (per node)
CPU • Dual Socket R3 (LGA 2011)
• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required




* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per node)
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SAS • LSI 3008 SAS3 (12Gbps) controller; RAID 0, 1, 10 support
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® X540 Dual port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics • ASPEED AST2400 BMC
Input/Output (per node)
SAS

• 3x SAS3 (12Gbps) ports

LAN

• 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2x USB 3.0 ports total (2x rear)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header (internal)

Others

• 1x SATADOM support on the motherboard



































Chassis
Form Factor • 2U Rackmount
Model CSE-827HQ+-R2K04B
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.25" (438mm)
Depth • 30.5" (774mm)
Gross Weight • 90 lbs (40.9kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-E

• 1x PCI-E 3.0 x16 Low-profile slot

0 Slot

• 1x "0 slot" (x16)

(Both CPUs need to be installed for full access to PCI-E slots and 0 slot.)

Drive Bays (per node)
Hot-swap

• 3x 3.5" Hot-swap SAS/SATA HDD trays

System Cooling
Fans

• 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply (76mm width)
  2000W Redundant Power Supplies with PMBus
Total Output Power • 1000W/2000W
Dimension
(W x H x L)
• 76 x 40.4 x 336 mm
Input • 100-127 Vac / 12-9.5 A / 50-60 Hz
• 200-220 Vac / 10-9.5 A / 50-60 Hz
• 220-230 Vac / 10-9.8 A / 50-60 Hz
• 230-240 Vac / 10-9.8 A / 50-60 Hz
• 200-240 Vac / 11.8-10 A / 50-60 Hz (UL/cUL only)
+12V • Max: 83.3A & Min: 0A (100-127 Vac)
• Max: 150A & Min: 0A (200-220 Vac)
• Max: 165A & Min: 0A (220-230 Vac)
• Max: 166.7A & Min: 0A (230-240 Vac)
• Max: 166.7A & Min: 0A (200-240 Vac)(UL/cUL only)
+5Vsb • Max: 1A / Min: 0A
Output Type • 27 Pairs Gold Finger Connector
Certification • Titanium Level
System Bios
Bios Type

• 128Mb SPI Flash EEPROM with AMI BIOS

Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
