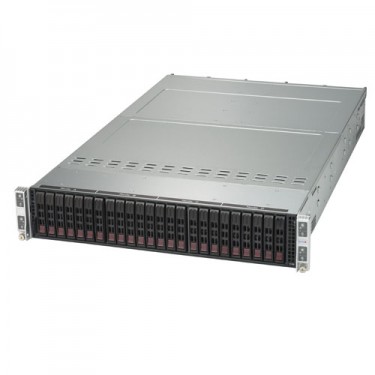

  • Supermicro 2U Rackmount SYS-6028TP-HC0R-SIOM - Angle
  • Supermicro 2U Rackmount SYS-6028TP-HC0R-SIOM - Node
  • Supermicro 2U Rackmount SYS-6028TP-HC0R-SIOM - Front
  • Supermicro 2U Rackmount SYS-6028TP-HC0R-SIOM - Rear

Supermicro 2U TwinPro2 Rackmount SuperServer SYS-6028TP-HC0R-SIOM

Call for price.
SKU:SYS-6028TP-HC0R-SIOM

Quick Overview:

Key Features:
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600
   v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 SIOM card support
• 1 Dedicated IPMI LAN port
• 3 Hot-swap 3.5" SAS/SATA HDD Bays
• LSI 3008 SAS3 controller (8 ports); RAID 0, 1, 10
• Mini-mSATA (half size) support
• 2000W Redundant Power Supplies Titanium Level (96%)
• 1 SATA DOM


Details

SuperServer SYS-6028TP-HC0R-SIOM 2U Rackmount

Supermicro SYS-6028TP-HC0R-SIOM 2U Rackmount with 2000W Redundant Power Supplies,Intel® C612 chipset and using Supermicro Super X10DRT-PS Motherboard and
CSE-827HQ+-R2K04B 2U Rackmount Chassis.
Product SKU
• SuperServer 6028TP-HC0R-SIOM (Black)
Motherboard
        Super X10DRT-PS
Processor/Cache (per node)
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores / Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required


* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory (per node)
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SAS • LSI 3008 SAS3 (12Gbps) controller; RAID 0, 1, 10 support
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network

• Must bundle with at least one network card:
• SIOM Networking AOC Matrix

Graphics • ASPEED AST2400 BMC
Input/Output (per node)
SAS • 3 SAS3 (12Gbps) ports
LAN • 1 RJ45 Dedicated IPMI LAN port
USB

• 2 USB 3.0 ports total (rear)

VGA

• 1 VGA port

Serial Port / Header

• 1 Fast UART 16550 port / 1 Header (internal)

Others

• 1 SATADOM support on the motherboard







































Chassis
Form Factor • 2U Rackmount / FatTwin
Model CSE-827HQ+-R2K04B
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.25" (438mm)
Depth • 30.5" (774mm)
Gross Weight • 72 lbs (32.7 kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power status LED
• HDD activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 (x16) Low-profile slot
• 1 PCI-E 3.0 (x8) Low-profile slot
• 1 SIOM card support

Note: Must bundle with Network Card

Drive Bays (per node)
Hot-Swap

• 3 Hot-swap 3.5" SAS/SATA HDD trays

System Cooling
Fans

• 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply (76mm Width)
  2000W Redundant Power Supplies with PMBus
Total Output Power • 1000W/2000W
Dimension
(W x H x L)
• 76 x 40.4 x 336 mm
Input • 100-127 Vac / 12-9.5 A / 50-60 Hz
• 200-220 Vac / 10-9.5 A / 50-60 Hz
• 220-230 Vac / 10-9.8 A / 50-60 Hz
• 230-240 Vac / 10-9.8 A / 50-60 Hz
• 200-240 Vac / 11.8-10 A / 50-60 Hz (UL/cUL only)
+12V • Max: 83.3A & Min: 0A (100-127 Vac)
• Max: 150A & Min: 0A (200-220 Vac)
• Max: 165A & Min: 0A (220-230 Vac)
• Max: 166.7A & Min: 0A (230-240 Vac)
• Max: 166.7A & Min: 0A (200-240 Vac)(UL/cUL only)
+5Vsb • Max: 1A / Min: 0A
Output Type • 27 Pairs Gold Finger Connector
Certification • Titanium Level
System Bios
Bios Type

• 128Mb SPI Flash EEPROM with AMI BIOS

Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment
Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
