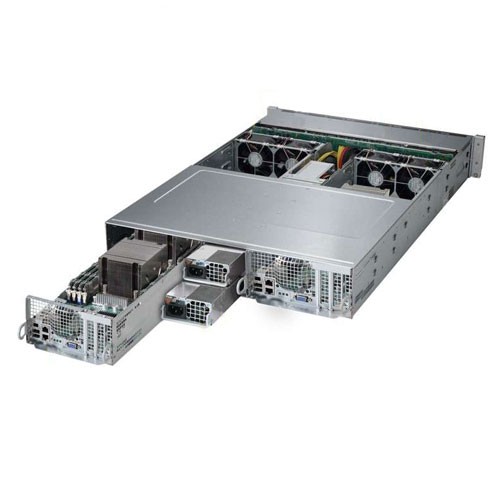

  • Supermicro 2U Rackmount SYS-2028TP-DC1TR - Angle

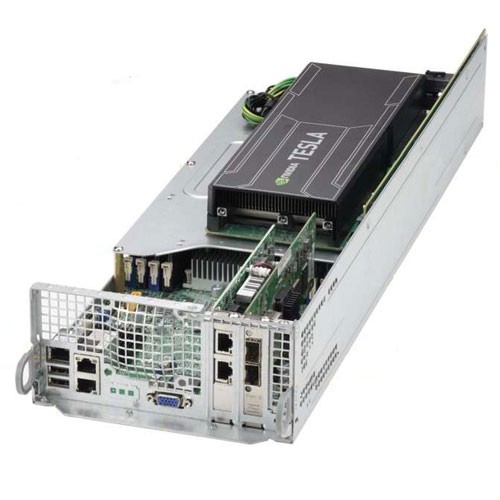

  • Supermicro 2U Rackmount SYS-2028TP-DC1TR - Node

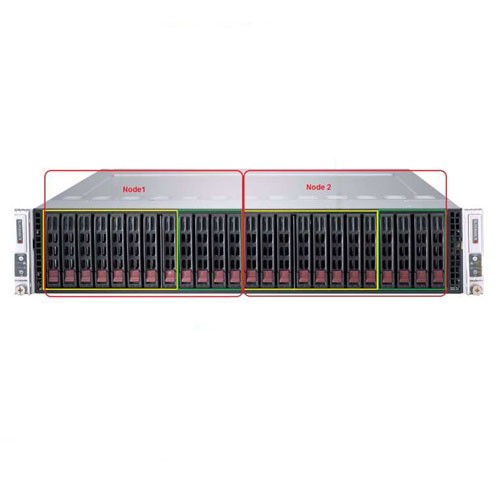

  • Supermicro 2U Rackmount SYS-2028TP-DC1TR - Front

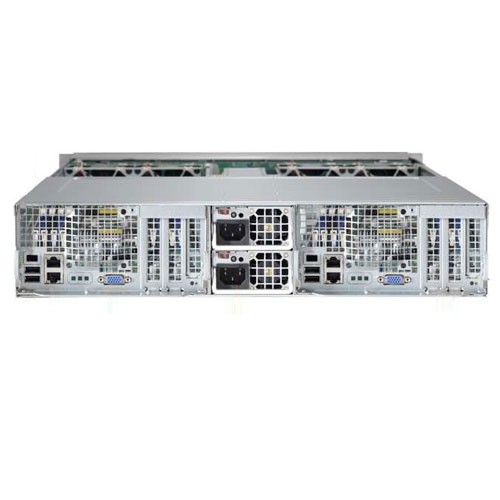

  • Supermicro 2U Rackmount SYS-2028TP-DC1TR - Rear

Supermicro 2U TwinPro Rackmount SuperServer SYS-2028TP-DC1TR

Call for price.
SKU:SYS-2028TP-DC1TR

Quick Overview:

Key Features:
Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 slot, and 1x PCI-E 3.0 x16 for GPU/Xeon
   Phi support (w/ GPU kit)
• Intel® X540 Dual port 10GBase-T LAN
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 12x 2.5" Hot-swap SAS (8) / SATA (4) HDD Bays
• LSI 3108 SAS3 controller (8 ports); RAID 0, 1, 5, 6, 10, 50, 60
• mSATA (full size) support
• 1280W Redundant Power Supplies Platinum Level Digital (94%)


Details

Superworkstation SYS-2028TP-DC1TR

Supermicro SYS-2028TP-DC1TR 2U Rackmount Barebone with 1280W Redundant Power Supplies Platinum Level Digital, Intel® C612 chipset support 12x 2.5" Hot-swap SAS (8) /
SATA (4) HDD Bays per node using Supermicro Super X10DRT-PT Server motherboard and CSE-217HD+-R1K28B 2U Rackmount Chassis.
Product SKU
• SuperServer 2028TP-DC1TR (Black)
Motherboard
        Super X10DRT-PT
Processor/Cache (per node)
CPU • Dual Socket R3 (LGA 2011)
• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required




* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per node)
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes • RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SAS • LSI 3108 SAS3 (12Gbps) controller; RAID 0, 1, 5, 6, 10, 50, 60 support
• Optional SuperCap
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® i350-AM2 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics • ASPEED AST2400 BMC
Input/Output (per node)
SAS

• 8x SAS3 (12Gbps) ports

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2x USB 3.0 ports total (2x rear)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header (internal)

Others

• 1x mSATA (full size) and one SATADOM support on the daughter card
• 1x SATADOM support on the motherboard









Chassis
Form Factor • 2U Rackmount
Model CSE-217HD+-R1K28B
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.25" (438mm)
Depth • 28.75" (730mm)
Gross Weight • 85 lbs (38.6kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-E

• 1x PCI-E 3.0 x16 Low-profile slot
• 1x PCI-E 3.0 x8 slot
• 1x PCI-E 3.0 x16 for GPU/Xeon Phi support (w/ GPU kit)

(Both CPUs need to be installed for full access to PCI-E slots)

Drive Bays (per node)
Hot-swap

• 12x 2.5" Hot-swap SAS (8) / SATA (4) HDD Bays

System Cooling
Fans

• 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply
  1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input • 1000W Output @ 100-140V, 8-12A, 50-60Hz
• 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output • 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, +5Vsb/4A
Certification • Platinum Certified
System Bios
Bios Type

• 128Mb SPI Flash EEPROM with AMI BIOS

Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
