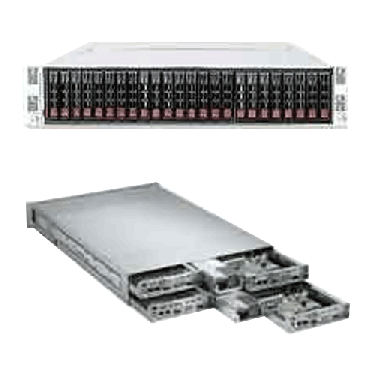

  • Supermicro 2U Twin2 Rackmount A+ AMD Opteron Server AS-2122TG-H6RF

Supermicro 2U Twin2 Rackmount A+ AMD Opteron Server AS-2122TG-H6RF

Call for price.
SKU:AS-2122TG-H6RF

Quick Overview:

Key Features:
• Four Hot-Pluggable Systems (nodes) in a 2U Form Factor
• Supports Dual AMD Opteron™ 6000 series processors
• Up to 256GB opf memory
• Dual-port GbE LAN Controller
• 24x Hot-swap 2.5" HDD (6 for each node)
• 1620W High-Efficiency Platinum Level Redundant Power Supplies

Details

Supermicro 2U Twin2 Rackmount A+ AMD Opteron Server AS-2122TG-H6RF

Product SKU
• A+ Server 2122TG-H6RF(Black)
Motherboard
  • Super H8DGT-HLF
Processor/Chipset
CPU • Dual 1944-pin Socket G34
• Supports up to two 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors
• HT3.0 Link support
Chipset • AMD chipset SR5670 + SP5100
Note Supports 6000 processors with Max ACP 80W (TDP 115W)
System Memory (per node)
Memory Capacity • 8 DIMM sockets
• Support up to 256GB Registered ECC 1866/1600/1333/1066 SDRAM in 8 DIMMs
• Quad channel memory bus
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR3 1866/1600/1333/1066 MHz Registered ECC or Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Memory Voltage

• 1.35V or 1.5V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices (per node)
SAS • LSI 6Gbps SAS 2108 w/ Hardware RAID 0, 1, 10, 5, 50, and 6 support
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Winbond® WPCM450 BMC
Network Controllers • Intel® 82576 dual-port Gigabit Ethernet Ethernet
• 10/100/1000BASE-T support
VGA

• Matrox G200 16MB DDR2

Super I/O

• Winbond® W83527 chip

Expansion Slots (per node)
PCI-E • 1x PCI-E 2.0 x16
Input/Output (per node)
SAS • 6x SAS2 (6Gb/s) Ports
LAN • 2 RJ45 LAN ports
• 1 RJ45 Dedicated LAN supports IPMI
USB • 5x USB 2.0 ports
• 2x Rear, 1x header (2x ports), and 1x Type A
VGA • 1x VGA port (via dongle)
Serial Ports • 1x Fast UART 16550 serial port
• 1x serial port header
System BIOS (per node)
BIOS Type

• 16Mb SPI Flash ROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• USB Keyboard Support
• SMBIOS 2.3

Chassis
Form Factor • 2U Twin2 Rackmount
Model SC217HQ-R1620B
Dimension and Weight (stand-alone chassis / package)
Height • 3.47" (88mm)
Width • 17.25" (438mm)
Depth • 28.5" (724mm)
Gross Weight • 85 lbs / 38.6 kg
Available Colors • Black
Front Panel
Buttons

• 4x Power On/Off button
• 4x UID button

LEDs

• 4x Power status LED
• 4x UID LED
• 4x Network activity LEDs
• 4x System overheat / fan failed / power failed LED

Drive Bays
Hot-swap

• 24x Hot-swap 2.5" HDD (6 for each node)

System Cooling
Fans

• 4x 80mm PWM cooling fans

Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
• 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • 80Plus Platinum Certified
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, VBAT, HT, memory, chipset
• CPU switching voltage regulator

FAN • Up to 4-fan status tachometer monitoring
• Up to four 4-pin fan headers
• Status monitor for speed control
• 3-pin fan support (w/o speed control)
• Low noise fan speed control (4-pin fan only)
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 8x Fan connectors
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
• +5V Standby Alert LED
Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
