  • Supermicro 2U Twin2 MultiNode SYS-6027TR-H70RF+

Supermicro 2U Twin2 MultiNode SYS-6027TR-H70RF+

Call for price.
SKU:SYS-6027TR-H70RF+

Quick Overview:

Key Features:
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and
   E5-2600 v2 family†
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
• 1x MicroLP PCI-E 3.0 x8 slot
• Intel® i350 Dual port Gigabit Ethernet
• 3x 3.5" Hot-swap SATA3/SAS2 HDD Bays
• LSI 2108 SAS2 Controller (BPN-ADP-SAS2-L6i)
• 1620W Redundant Power Supplies Platinum Level (94%)

Details

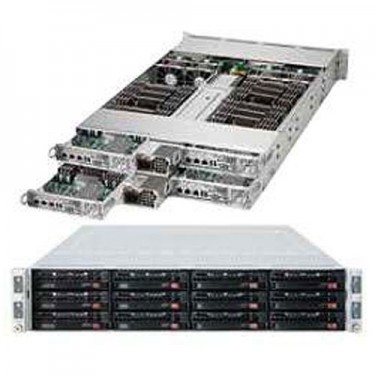

Superworkstation SYS-6027TR-H70RF+

Supermicro SYS-6027TR-H70RF+ 2U Rackmount Barebone with 1620W Redundant Power Supplies, Intel® C602 Chipset support 3x 3.5" Hot-swap SATA3/SAS2 HDD Bays per node
using Supermicro Super X9DRT-HF+ Server Motherboard and CSE-827HQ-R1620MB 2U Rackmount Chassis.
Product SKU
• SuperServer 6027TR-H70RF+ (Black)
Motherboard
        Super X9DRT-HF+
Processor/Cache (per node)
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP *)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
Note • † BIOS version 3.0 or above is required




* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602 chipset
SAS • LSI 2008 SAS2 (6Gbps) (BPN-ADP-SAS2-L6i)
• RAID 0, 1, 10 support
SATA • SATA 2.0 & 3.0 with RAID 0, 1, 5, 10
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics • Matrox G200eW
Input/Output (per node)
Serial ATA

• 3x SATA 3.0 ports (6Gbps)

SAS

• 3x SAS2 ports (6Gbps)

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 5x USB 2.0 ports total (2 rear + 2 via header + 1 Type A)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header









Chassis
Form Factor • 2U Rackmount
Model CSE-827HQ-R1620MB
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.25" (438mm)
Depth • 26.75" (679mm)
Gross Weight • 85 lbs (38.6kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
• UID button

LEDs • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-E

• 1 Micro Low Profile PCI-E 3.0 x8 slot MicroLP Adapter Matrix

Drive Bays (per node)
Hot-swap

• 3x 3.5" Hot-swap SATA3/SAS2 HDD trays

System Cooling
Fans

• 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output • 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified (94%)
System Bios
Bios Type

• 128Mb SPI Flash EEPROM with AMI BIOS

Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
