Details

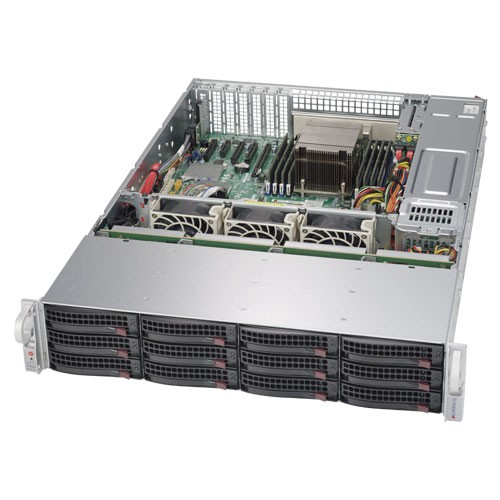

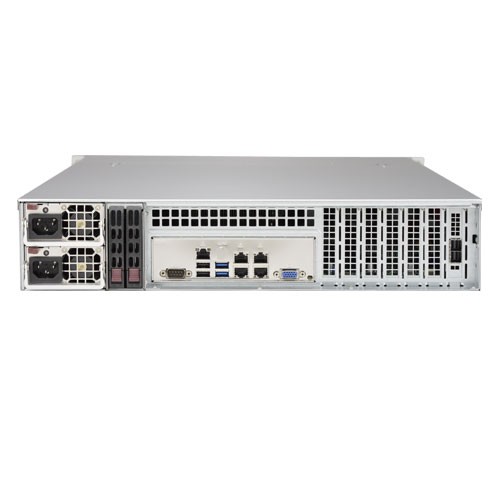

Super X10SRH-CLN4F Server Motherboard and CSE-826BE1C-R920LPB 2U Rackmount Chassis.
Product SKU |
|
---|---|
SSG-5028R-E1CR12L | • SuperServer 5028R-E1CR12L (Black) |
Motherboard |
|
---|---|
Super X10SRH-CLN4F |
Processor/Cache |
|
---|---|
CPU | • Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **) |
Core / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
Note | • † BIOS version 2.0 or above is required ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
System Memory |
|
---|---|
Memory Capacity |
• 8x 288-pin DDR4 DIMM slots • Up to 1TB ECC 3DS LRDIMM • Up to 512GB ECC LRDIMM • Up to 256GB ECC RDIMM |
Memory Type | • 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
DIMM Sizes | • 3DS LRDIMM: 128GB • LRDIMM: 64GB, 32GB • RDIMM: 32GB, 16GB, 8GB, 4GB |
Memory Voltage | • 1.2 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
---|---|
Chipset | • Intel® C602 chipset |
SAS | • SAS3 (12Gbps) via LSI 3008 (IR mode) • SW RAID 0, 1, 10 |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
Network Controllers | • Intel® i350 Dual-Port Gigabit Ethernet Controller |
Video | • ASPEED AST2400 BMC |
Input/Output |
|
---|---|
LAN | • 4x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 2x USB 3.0 ports (rear) • 2x USB 2.0 ports (rear) |
VGA | • 1x VGA port |
Serial Port/Header | • 1x Fast UART 16550 port / 1 Header
|
Chassis |
|
---|---|
Form Factor | • 2U Rackmount |
Model | • CSE-826BE1C-R920LPB |
Dimension and Weight |
|
---|---|
Height | • 3.5" (89mm) |
Width | • 17.2" (437mm) |
Depth | • 25.6" (648mm) |
Weight | • 58 lbs (26.3 kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slots |
|
---|---|
PCI-Express | • 1x PCI-E 3.0 x4 (in x8) slot • 1x PCI-E 3.0 x8 (in x16) slot • 2x PCI-E 3.0 x8 slots • 1x PCI-E 2.0 x2 (in x4) slot • 1x PCI-E 2.0 x4 (in x8) slot |
Drive Bays |
|
---|---|
Hot-Swaps | • 12x 3.5" Hot-swap SAS3 HDD bays |
Optional | • 2x 2.5" Hot-swap HDD bays (rear) |
Backplane |
|
---|---|
SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink |
System Cooling |
|
---|---|
Fans | • 3x 8cm 9.5K RPM, 4-pin PWM fans |
Power Supply |
|
---|---|
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
DC Output | • 4 Amp @ +5V standby • 75 Amp @ +12V |
Certification | • Platinum Certified (94%) |
System Bios |
|
---|---|
Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F) |
