Details

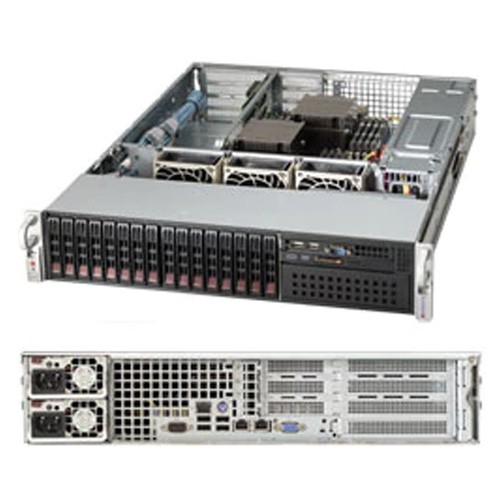

Supermicro 2U SuperChassis CSE-213AC-R920WB
|
Product SKU
| |
|---|---|
| CSE-213AC-R920WB | • SuperChassis 213AC-R920WB |
|
Form Factor
| |
|---|---|
| • 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards | |
| Processor Support
|
|
|---|---|
| • Dual and Single Intel® and AMD processors | |
|
Dimensions
| |
|---|---|
| Height | • 3.5" (89 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 24.8" (630 mm) |
| Gross Weight | • 60 lbs (27.22 kg) |
| Available Color | • Black |
|
Expansion Slots
| • 4 full-height & full-length expansion slot(s) • 3 low-profile expansion slot(s) |
|---|
|
Drive Bays
| • 16 x 2.5" hot-swap SAS/SATA drive bay • 1 x 5.25" drive bay |
|---|
|
Backplane
| • 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD |
|---|
|
Peripheral Drives
| • Optional 1 x slim DVD-ROM drive bay • Optional 2 x USB 2.0 ports • Optional 1 x COM port tray |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
LEDs |
• 2 Network Activity LEDs • HDD activity LED • Power Status LED • Power Fail LED • System Information LED |
|---|
|
Motherboard (for CSE- 213AC-R920WB)
| |
|---|---|
| • X10DRW-iT • X10DRW-i |
|
|
System Cooling
| |
|---|---|
| Fans | • 3 x 8cm high-performance PWM fan(s) |
|
System Monitoring
| |
|---|---|
• Chassis intrusion switch |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 920W Redundant Platinum Level Power Supply |
|
| Power Efficiency | • 94% |
| Total Output Power and Input |
• 920W with Input 100 - 240Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 75A / Min: 0.5A (100Vac - 240Vac) |
| +5Vsb | • Max: 4A / Min: 0A |
| Power Distributor | • PDB-PT216-8824 |
| Certification | • Platinum Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
