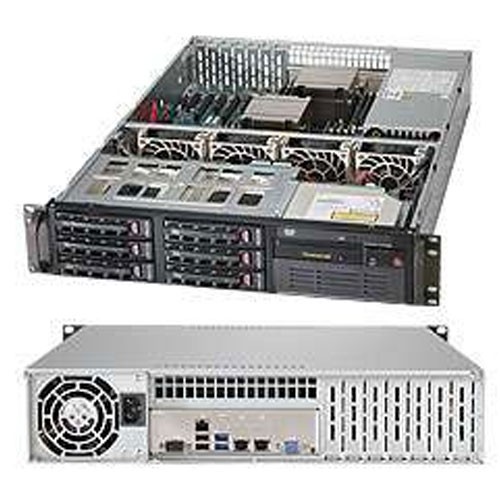

Supermicro 2U Rackmount SuperServer SYS-6028R-T

Call for price.

SKU:SYS-6028R-T

Quick Overview:

Key Features:
• Cloud and Virtualization needs
• Compute Intensive Application
• Database Processing and Storage
• High Availability Storage
• Mission-critical Applications
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x
DIMM slots
• 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
• Intel® i350 Dual port GbE LAN
• Intel C612 controller for SATA3 ports; RAID 0, 1, 5, 10
• 6x 3.5" Hot-swap SATA3 HDD Bays
• 650W High-efficiency Power Supply Gold Level

Description

Details

SuperServer SYS-6028R-T

Supermicro 6028R-T 2U Rackmount Barebone with 650W High-efficiency Power Supply, Intel® C612 chipset support 6x 3.5" Hot-swap SATA3 HDD Bays using Supermicro Super
X10DRi Server Motherboard and CSE-823TQ-653LPB 2U Rackmount Chassis.

Product SKU
SYS-6028R-T	• SuperServer 6028R-T (Black)

Motherboard
	Super X10DRi

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Connectivity	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• ASPEED AST2400 BMC

Input/Output
Serial SATA	• 6x SATA3 (6Gbps) ports • 2x SATA3 (6Gbps) ports onboard • 2x SATA3 powered ports that support SATA DOM
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• Rear USB: 2x USB 3.0 + 2x USB 2.0 • USB Header: 2x 3.0, 4x 2.0, 1x Type A
Video	• 1x VGA Connector
Serial Port	• 1x COM Port

Management
Software	• SuperDoctor® 5 • Watch Dog • NMI, SPM, SUM • IPMI 2.0 • Intel Node Manager
Power Configurations	• ACPI / APM Power Management • Power-on mode for AC power recovery

Management

Software

• SuperDoctor® 5
• Watch Dog
• NMI, SPM, SUM
• IPMI 2.0
• Intel Node Manager

Power Configurations

• ACPI / APM Power Management
• Power-on mode for AC power recovery

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-823TQ-653LPB

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 19" (490mm)
Depth	• 27" (680mm)
Gross Weight	• 51.5 lbs (23.6 kg)

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LED	• Power status LED • HDD activity LED • 2x Network activity LEDs • System information (overheat/UID) LED

Expansion Slot
PCI-Express	• 3x PCI-E 3.0 x16 (Low-profile) • 3x PCI-E 3.0 x8 (Low-profile)

Drive Bays
Hot-Swaps	• 6x 3.5" Hot-swap SATA HDD trays

Backplane
	• 2U SAS/SATA backplane

System Cooling
Fans	• 4x 80cm hot-swap redundant PWM cooling fans

Power Supply
	650W AC-DC High Efficiency Power Supply
AC Input	• 100 - 140V, 8-5.2A 180-240V 4.2-3.1A, 50-60Hz
+5V	• 30 Amp
+5V standby	• 4 Amp
+12V	• 100-140Vac 49Amp; 180-240Vac 54Amp
-12V	• 0.5 Amp
+3.3V	• 25 Amp

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 40°C (41°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
