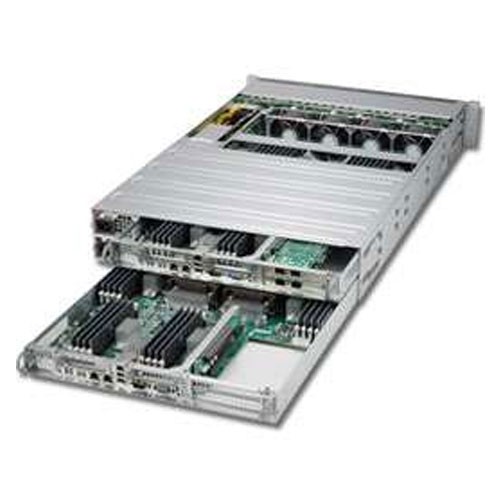

Supermicro 2U Rackmount SuperServer SYS-2028UT-BC1NRT

Call for price.

SKU:SYS-2028UT-BC1NRT

Quick Overview:

Key Features:
• Dual socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v2 /
E7-4800 v2 / E7-2800 v2 family (15-Core), w/ QPI up to 8.0 GT/s
• 2x NVMe HDD bays and 8x Hot-swap 2.5" SAS3 (12Gbps) via LSI® 3108
• Up to 2TB ECC DDR3, up to 1600MHz; 32x DIMM slots
• 2x PCI-E 3.0 x16 FH/HL slots, 1x PCI-E 3.0 x8 MicroLP card
• Dual 10GBase-T ports - Intel® X540
• 1280W Redundant Power Supplies Platinum Level Digital (95%+)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Description

Details

SuperServer SYS-2028UT-BC1NRT

Supermicro 2028UT-BC1NRT 2U Rackmount Barebone with 1280W Redundant Power Supplies, Intel® C602 Chipset support 2x NVMe HDD bays and 8x Hot-swap 2.5" SAS3
(12Gbps) via LSI® 3108 per node using Supermicro Super X10DBT-T Server Motherboard and CSE-227HD-R1K28B 2U Rackmount Chassis.

Product SKU
SYS-2028UT-BC1NRT	• SuperServer 2028UT-BC1NRT (Black)

Motherboard
	Super X10DBT-T

Processor/Cache
CPU	• Dual Socket R1 (LGA 2011) • Intel® Xeon® processor E7-8800 v2 / E7-4800 v2 / E7-2800 v2 (up to 15 Cores and 155W)
Cache	• Up to 37.5MB
System Bus	• QPI up to 8 GT/s
Note	† BIOS version 3.0 or above is required

System Memory
Memory Capacity	• 32x 240-pin DDR3 DIMM slots • Up to 2TB DDR3 ECC LRDIMM • Up to 1TB DDR3 ECC Registered memory (RDIMM)
Memory Type	• 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB LRDIMM 64GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SAS3	• Dual set of LSI® 3108 SAS3 (12Gbps); RAID 0, 1, 5, 6, 10, 50 • Daughter card: BPN-ADP-8S3108-1UBL
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® X540 Dual Port 10GBase-T Controller • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA3	• 8x SAS 3.0 ports (12Gbps)
LAN	• 2x RJ45 10GBase-T LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 2.0 ports total (2x rear)
VGA	• 1x VGA port
Serial Port/Header	• 1x Fast UART 16550 port / 1 Header

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-227HD-R1K28B

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 28.6" (726mm)
Weight	• 50 lbs (22.7kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LED	• Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED

Expansion Slot
PCI-Express	• 2x PCI-E 3.0 x16 slots (FH/HL) • 1x PCI-E 3.0 x8 MicroLP card

Drive Bays (per Node)
Hot-Swaps	• 8x Hot-swap 2.5" SAS3 HDD bays
Optional OS Drive	• 2x NVMe drive bays

Backplane
	• 1x SAS/SATA Backplane

System Cooling
Fans	• 4x 80mm 4-pin PWM fans

Power Supply
	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	• 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certification	• Platinum Certified

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • BIOS resuce hot keys • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
