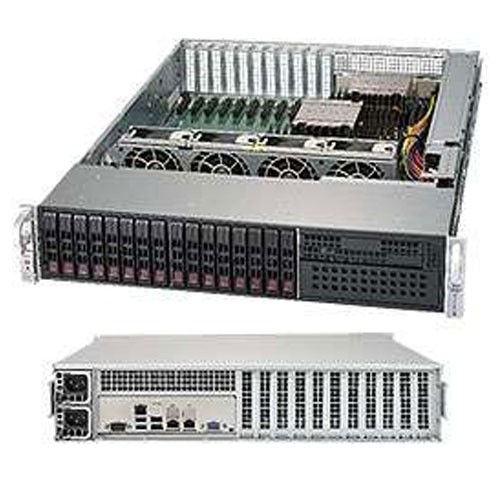

Supermicro SYS-2028R-TXR
2U Rackmount with Intel® C612 chipset, 16 Hot-swap 2.5" drive bays: 8x SATA3 ports by default, using Super X10DRX motherboard and
CSE-213XAC-R1K05LP Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-2028R-TXR | • SuperServer 2028R-TXR (Black) |
Motherboard |
|
|---|---|
| Super X10DRX | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers | • Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| Serial ATA | • 8 SATA3 (6Gbps) ports |
| LAN | • 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) |
| Serial Ports / Header | • 1 COM port (rear) |
| VGA | • 1 VGA port |
| DOM | • 2 SuperDOM (Disk on Module) ports |
| TPM | • 1 TPM 1.2 20-pin Header
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-213XAC-R1K05LP |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.76" (705.3mm) |
| Weight | • 72 lbs (32.7 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System information (overheat/UID) LED • Power fail LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 10 PCI-E 3.0 x8 slots (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot-swap | • 16 Hot-swap 2.5" drive bays Note: optional storage card is required to support more than 10 drives |
Peripheral Bay |
|
|---|---|
| Peripheral Bay | • 1x 5.25" peripheral drive bay |
| Optional | • 1x slim DVD-ROM drive (optional) |
Backplane |
|
|---|---|
| • 1x SAS3 / SATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 4x 8cm 7K RPM, Middle fans |
Power Supply |
|
|---|---|
| 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | • 800W/1000W |
| Dimension
(W x H x L) |
• 38 x 40 x 360 mm |
| Input | • 100-127Vac / 9-7.5A / 50-60Hz • 200-240Vac / 6-5A / 50-60Hz |
| +12V | • Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac) |
| +5Vsb | • Max: 4A / Min: 0A |
| Output Type | • Gold Finger Connector (16 Power Pin, 14 Signal Pin) |
| Certification | • Titanium Level |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Bios Features | • Operating Temperature:
10°C to 35°C (50°F to 95°F) |
