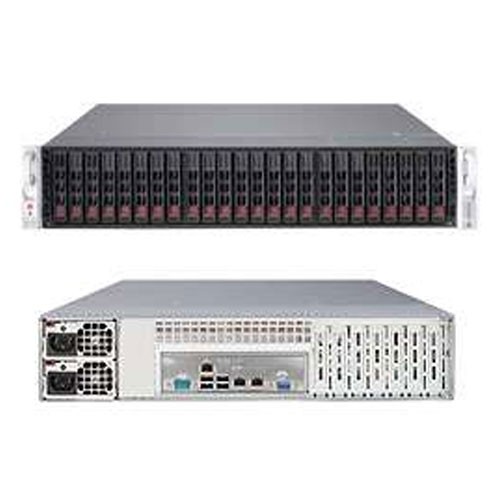

Super X9DRH-7TF Server Motherboard and CSE-216BA-R920LPB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SSG-2027R-AR24 | • SuperServer 2027R-AR24 (Black) |
Motherboard |
|
|---|---|
| Super X9DRH-7TF | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note |
† BIOS version 3.0 or above is required |
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J Chipset |
| AHCI SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| SCU SATA | • SATA 2.0 3Gbps with RAID 0, 1, 10 |
| SAS | • SAS2 via LSI 2208 (1GB cache) • HW RAID 0, 1, 5, 6, 10, 50, 60 support |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® X540 Dual Port 10GBase-T |
| Video | • Matrox G200eW |
Input/Output |
|
|---|---|
| AHCI SATA | • 2x SATA 3.0 ports (6Gbps) • 4x SATA 2.0 ports (3Gbps) |
| SCU SATA | • 4x SATA 2.0 ports (3Gbps) |
| SAS | • 24x SAS2 ports (6Gbps) |
| LAN |
• 2x RJ45 10GBase-T ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 7x USB 2.0 ports total (4 rear + 2 via header + 1 Type A) |
| Video | • 1 VGA port |
| Serial Port/Header | • 2x Fast UART 16550 serial COM port (1 rear & 1 header)
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-216BA-R920LPB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (647.7mm) |
| Weight | • 61 lbs (27.7 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slot |
|
|---|---|
| PCI-Express | • 1x PCI-E 3.0 x16 slot |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 24x Hot-swap 2.5" SAS2/SATA3 HDD Bays with direct attached backplane |
Backplane |
|
|---|---|
| • SAS2 / SATA3 direct attached backplane | |
System Cooling |
|
|---|---|
| Fans | • 3x 8cm 9.5K RPM, 4-pin PWM fans |
Power Supply with Power Distributor |
|
|---|---|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | • 4 Amp @ +5V standby • 75 Amp @ +12V |
| Certification | • Platinum Certified (94%) |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F)
|
