  • Supermicro 2U Rackmount SSG-6028R-E1CR12L

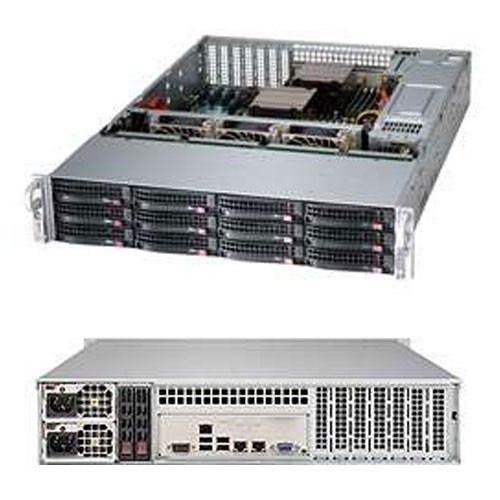

Supermicro 2U Rackmount Storage Server SSG-6028R-E1CR12L

Call for price.
SKU:SSG-6028R-E1CR12L

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 (slot 1 & 2 occupied by controller and
   JBOD expansion port)
• Dual 10GBase-T LAN w/ Intel® X540
• 12x 3.5" Hot-swap drive bays: 8x 3.5" Hot-swap SAS3/SATA3 drive bays and
   4x NVMe hybrid drive bays (SAS3/SATA3/NVMe*); 2x 2.5" optional
   Hot-swap SATA drive bays (rear)
• SAS3 via LSI 3008 controller; IT mode
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 3x 8cm hot-swap redundant PWM cooling fans
• 920W Redundant Power Supplies Platinum Level (94%)

Details

SuperServer SSG-6028R-E1CR12L

Supermicro SSG-6028R-E1CR12L 2U Rackmount Barebone with 920W Redundant Power Supplies, Intel® C612 chipset support 12x 3.5" Hot-swap SAS3/SATA3 drive bays; using
Supermicro Super X10DRH-iT Server Motherboard and CSE-826BE1C-R920LPB 2U rackmount Chassis.

Product SKU
• SuperServer 6028R-E1CR12L (Black)
Motherboard
        Super X10DRH-iT
Processor/Cache
CPU

• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)

Cores/Cache

• Up to 22 Cores† / Up to 55MB† Cache

System Bus

• QPI up to 9.6 GT/s

Note

• † BIOS version 2.0 or above is required





* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SAS • SAS3 (12Gbps) via LSI 3008
• IT mode firmware
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• Intel® X540 Dual Port 10GbE
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Realtek RTL8201N PHY (dedicated IPMI)

Video • ASPEED AST2400 BMC
Input/Output
LAN • 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
• 2 USB 2.0 ports (rear)
• 2 U
Video • 1x VGA port
Serial Port/Header

• 1 Fast UART 16550 port / 1 Header















Chassis
Form Factor • 2U Rackmount
Model CSE-826BE1C-R920LPB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 25.6" (648mm)
Weight • 58 lbs (26.3 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED
Expansion Slot
PCI-Express • 1 PCI-E 3.0 x16 slot
• 6 PCI-E 3.0 x8 slots
• Slot 1 & 2 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-Swaps • 12x 3.5" Hot-swap SAS3/SATA3 drive bays
Optional • 2x 2.5" Hot-swap SATA drive bays (rear)
Backplane
  • SAS3/SATA3 single expander per backplane
System Cooling
Fans • 3x 8cm hot-swap redundant PWM cooling fans
Power Supply with Power Distributor
  920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Ouput • 4 Amp @ +5V standby
• 75 Amp @ +12V
Certification • Platinum Certified (94%)
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
