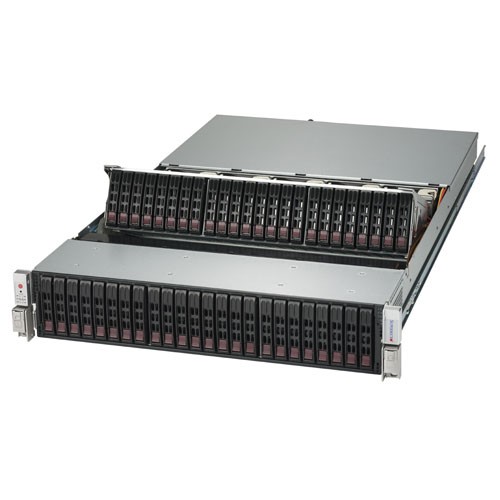

  • Supermicro 2U Rackmount SSG-2028R-E1CR48L - Angle

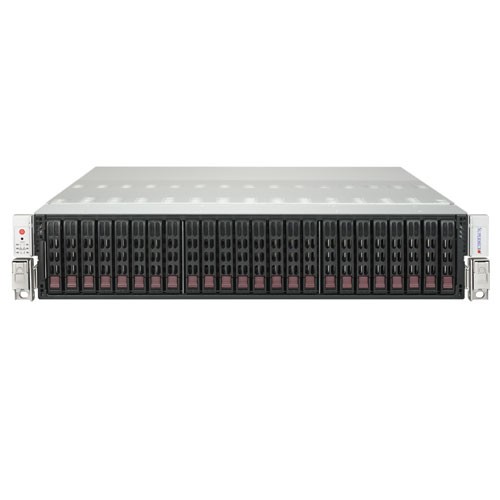

  • Supermicro 2U Rackmount SSG-2028R-E1CR48L - Front

Supermicro 2U Rackmount Storage Server SSG-2028R-E1CR48L

Call for price.
SKU:SSG-2028R-E1CR48L

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x
   DIMM slots
• 2x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
• SIOM for flexible networking options
• 48x 2.5" Hot-swap SAS3/SATA3 drive bays; optional 2x 2.5" Hot-swap rear
   SATA drive bays
• LSI 3008 SAS3 IT mode controller
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 5x 8cm hot-swap redundant PWM fans
• 1600W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 24 HDDs and 1 NIC or SIOM card).

Details

SuperServer SSG-2028R-E1CR48L

Supermiro SSG-2028R-E1CR48L 2U Storage Rackmount Server Barebone with 1600W Redundant Power Supplies Titanium Level, Intel Xeon E5-2600 v3 family,48x 2.5" Hot-swap
SAS3/SATA3 drive bays + 2x 2.5" Hot-swap drive bays

Product SKU
• SuperServer 2028R-E1CR48L (Black)
Motherboard
        Super X10DSC+
Processor/Cache
CPU

• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)

Cores/Cache

• Up to 22 Cores† / Up to 55MB† Cache

System Bus

• QPI up to 9.6 GT/s

Note

• † BIOS version 2.0 or above is required





* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity • 24x 288-pin DDR4 DIMM slots
• Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SAS3 • LSI 3008 SAS3 IT mode
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• SIOM support for flexible networking options

Graphics • ASPEED AST2400 BMC
Input/Output
LAN • LAN ports via SIOM Add-On-Card: (See SIOM Compatibility Matrix)
USB • 3 USB 3.0 ports (2 rear + 1 Type A)
Video • 1x VGA
Serial Port/Header

• 1 Fast UART 16550 port / 1 Header





































Chassis
Form Factor • 2U Rackmount
Model CSE-226STS-R1K62P1
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 30.2" (767mm); With Cable Management Arm Installed: 35.2" (895mm)
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED
Expansion Slot
PCI-Express • 2 PCI-E 3.0 x16 slots
• 1 PCI-E 3.0 x8 slots
Drive Bays
Hot-Swaps • 48x 2.5" Hot-swap SAS3/SATA3 drive bays
• Optional 2x 2.5" rear Hot-swap SATA drive bays
Backplane
  • Two 24 port SAS3 12G expander backplanes, each supporting up to 24x 2.5" SAS3 drives
System Cooling
Fans • 5x 8cm hot-swap redundant PWM cooling fans
Power Supply
  1600W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1600W
Dimension
(W x H x L)
• 73.5 x 40 x 203 mm
Input • 100-127Vac / 13 - 9A / 50-60Hz
• 200-240Vac / 10 - 8A / 50-60Hz
+12V • Max: 83.3A / Min: 0A (100-127Vac)
• Max: 133A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
