  • Supermicro 2U Rackmount SSG-2028R-E1CR24N

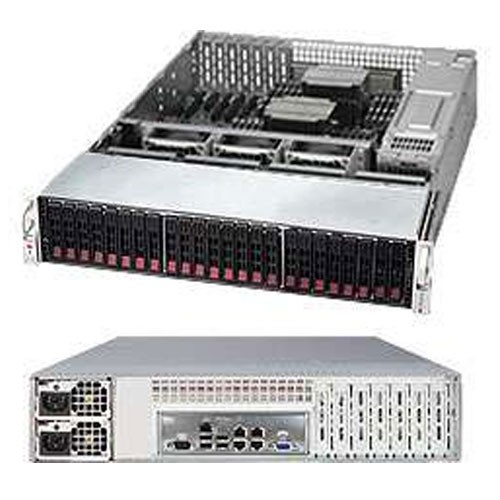

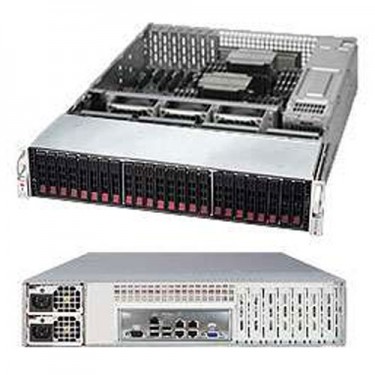

Supermicro 2U Rackmount Storage Server SSG-2028R-E1CR24N

$0.00
SKU:SSG-2028R-E1CR24N

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x
   DIMM slots
• 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8); Slot 3 & 4
  occupied by controller and JBOD expansion port)
• Quad LAN w/ Intel® X540 10GBase-T
• 24x 2.5" Hot-swap SAS3/SATA3 drive bays
• Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 3x 8cm hot-swap redundant PWM fans
• 920W Redundant Power Supplies Platinum Level (94%)

Details

SuperServer SSG-2028R-E1CR24N

Supermiro 2028R-E1CR24N 2U Storage Rackmount Server Barebone with 920W Redundant Power Supplies Platinum Level (94%), Intel Xeon E5-2600 v3/v4 family,24x 2.5" Hot-swap
SAS3/SATA3 drive bays.

Product SKU
• SuperServer 2028R-E1CR24N (Black)
Motherboard
        Super X10DRi-T4+
Processor/Cache
CPU

• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)

Cores/Cache

• Up to 22 Cores† / Up to 55MB† Cache

System Bus

• QPI up to 9.6 GT/s

Note

• † BIOS version 2.0 or above is required





* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity • 24x 288-pin DDR4 DIMM slots
• Up to 3TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS3 AOC • LSI 3108 SAS3 AOC
• Hardware RAID 0, 1, 5, 6, 10, 50, 60
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• Intel® X540 Quad Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Realtek RTL8201N PHY (dedicated IPMI)

Video • ASPEED AST2400 BMC
Input/Output
LAN • 4 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear + 1 Type A)
• 2 USB 2.0 ports (2 rear)
Video • 1x VGA port
Serial Port/Header

• 1 Fast UART 16550 port / 1 Header

















Chassis
Form Factor • 2U Rackmount
Model CSE-216BE1C-R920LPB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 24.8" (630mm)
Weight • 61 lbs (27.7 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED
Expansion Slot
PCI-Express • 2 PCI-E 3.0 x16 slots
• 3 PCI-E 3.0 x8 slots
• 1 PCI-E 2.0 x4 (in x8) slot
• Slot 3 & 4 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-Swaps • 24x 2.5" Hot-swap SAS3/SATA3 HDD bays
Backplane
  • SAS3 12Gbps single expander backplane, w/ 24x SAS3 2.5" drive slots and 4 mini-SAS HD connectors for SAS3 uplink/downlink
System Cooling
Fans • 3x 8cm 7K RPM, 4-pin PWM fans
Power Supply with Power Distributor
  920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Ouput • 4 Amp @ +5V standby
• 75 Amp @ +12V
Certification • Platinum Certified (94%)
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
