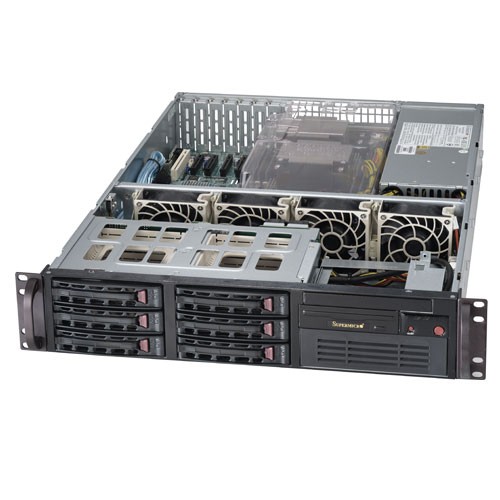

  • Supermicro 2U Rackmount Server SYS-6027B-TLF - Angle

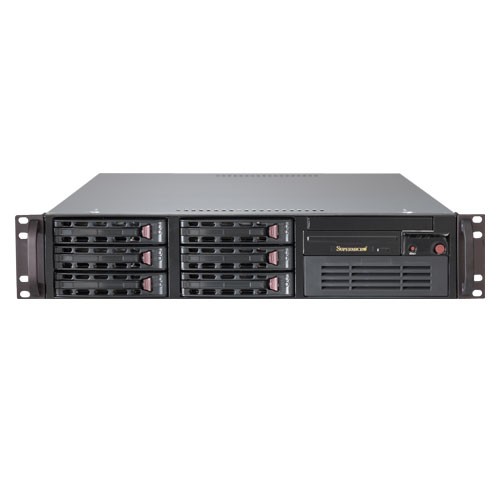

  • Supermicro 2U Rackmount Server SYS-6027B-TLF - Front

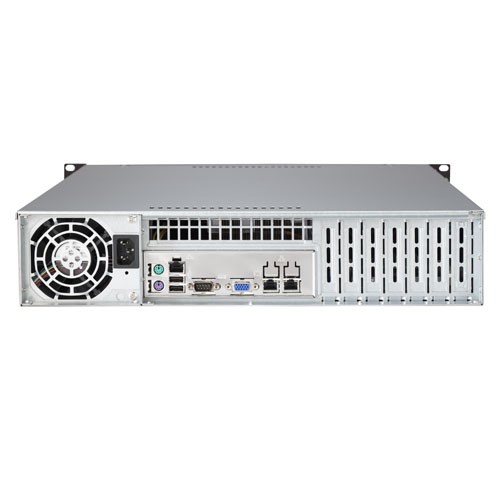

  • Supermicro 2U Rackmount Server SYS-6027B-TLF - Rear

Supermicro 2U Rackmount Server SYS-6027B-TLF

$0.00
SKU:SYS-6027B-TLF

Quick Overview:

Key Features:
• Dual socket B2 (LGA 1356) supports Intel® Xeon® processor E5-2400 v2
• Up to 192GB DDR3 1600MHz ECC R/LRDIMM; 6x DIMM slots
• Expansion slots: 1 PCI, 3 PCI-E 3.0 x8 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8)
• Intel® 82574L Dual port GbE
• 7x USB 2.0 ports (2 rear, 4 via header + 1 Type A)
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 6x 3.5" Hot-swap SATA2 HDD Bays
• 650W High-efficiency Power Supply Gold Level

Details

SuperServer SYS-6027B-TLF

Supermicro 6027B-TLF 2U Rackmount Barebone with 650W High-efficiency Power Supply Gold Level, Intel® C602 Chipset support 6x 3.5" Hot-swap SATA2 HDD Bays using Supermicro
Super X9DBL-iF Server Motherboard and CSE-823T-653LPB 2U Rackmount Chassis.

Product SKU
• SuperServer 6027B-TLF (Black)
Motherboard
        Intel® Xeon® processor E5-2400 v2 Super X9DBL-iF
Processor/Cache
CPU

• Dual Socket B2 (LGA 1356)
• Intel® Xeon® processor E7-8800 v2 / E7-4800 v2 / E7-2800 v2 (up to 15 Cores and 155W)
• 50W to 95W E5-2400 support

Cache

• Up to 25MB

System Bus

• QPI up to 8 GT/s

System Memory
Memory Capacity • 6x 240-pin DDR3 DIMM slots
• Supports up to 192 GB DDR3 ECC Registered memory (R/LRDIMM)
• Supports up to 48 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602 Chipset
SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1, 5, 10
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® 82574L Gigabit Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201F PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Input/Output
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 7x USB 2.0 ports total (2 rear + 4 via header + 1 Type A)
VGA • 1x VGA port
Serial Port/Header

• 2x Fast UART 16550 ports / 1 rear and 1 header











































Chassis
Form Factor • 2U Rackmount
Model CSE-823T-653LPB
Dimension and Weight
Height • 3.5" (89mm)
Width • 16.8" (427mm)
Depth • 25.5" (648mm)
Weight • 42 lbs (19.05kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Information LED
• Power fail LED
Expansion Slot
PCI-Express

• 1x PCI-E 3.0 x16
• 3x PCI-E 3.0 x8
• 1x PCI-E 3.0 x4 (in x8)

(Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)

Drive Bays
Hot-Swaps • 6x 3.5" Hot-swap SATA2 HDD trays
Peripheral Bay(s) • 1x 5.25" full-height peripheral bay
Peripheral Drives
DVD-ROM • Slim DVD-ROM drive (optional)
System Cooling
Fans • 4x 8cm 7k RPM middle fans
Power Supply
  650W AC-DC High Efficiency Power Supply
AC Input • 100 - 140V, 8-5.2A 180-240V 4.2-3.1A, 50-60Hz
+5V • 30 Amp
+5V standby • 4 Amp
+12V • 100-140Vac 49Amp 180-240Vac 54Amp
-12V • 0.5 Amp
+3.3V • 25 Amp
Certification • Platinum Certified
System Bios
Bios Type • 64Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• BIOS resuce hot keys
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
