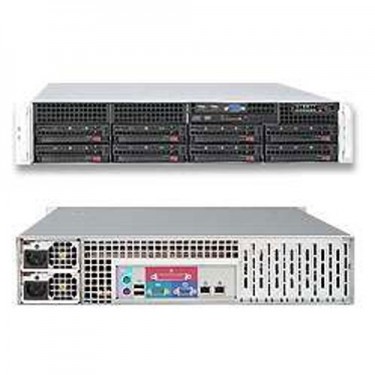

Hot-swap drive bays using Supermicro Super X7DWN+ other board and SC825TQ-R700LPV 2U Chassis.
Product SKU |
|
---|---|
SYS-6025W-NTR+V | • SuperServer 6025W-NTR+V (Silver) |
SYS-6025W-NTR+B | • SuperServer 6025W-NTR+B (Black) |
Motherboard |
|
---|---|
Super X7DWN+ |
Processor/Cache |
|
---|---|
CPU | • Dual 771-pin LGA Sockets |
System Bus | • 1600 / 1333 / 1066 MHz system bus |
System Memory |
|
---|---|
Memory Capacity |
• Six 240-pin DIMM slots • Supports up to 128 GB 800 / 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs • Memory Sparing supported |
Memory Type | • 800 / 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 512 MB, 1GB, 2GB, 4GB , 8GB** |
Memory Voltage | • 1.8 V or 1.5 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® 5400 (Seaburg) chipset • ESB2 |
SATA | • Intel ESB2 SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Windows only) • RAID 0, 1, 10 support (Linux) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 / 1.5 |
Network Controllers | • Intel® 82575 Dual-Port Gigabit Ethernet Controller |
Graphics | • ATI ES1000 controller with 32 MB of video memory |
Super I/O | • Winbond 83627HG chip |
Expansion Slot |
|
---|---|
PCI-Express | • 3 (x8) PCI-e slots (2 w/ Gen 2.0) • 1 (x4) PCI-e slot |
PCI-X | • 2x 64-bit 133MHz PCI-X (3.3V) slots |
UIO | • 1x UIO slot |
Input/Output |
|
---|---|
Serial ATA | • Six Serial ATA ports • Six SATA hard drives supported |
IDE | • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card • Compact Flash (40-pin connector, IDE 1, single channel) slot • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
Floppy | • 1 Floppy controller; 1.44 MB |
LAN | • 2x RJ45 LAN ports |
USB | • 2x USB rear ports • 3x USB internal headers • Total 5 USB 2.0 Compliant / 1.1 Compliant |
VGA | • 1 VGA port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 1 Fast UART 16550 serial port |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS • EFI BIOS Support |
Bios Features | • Plug and Play (PnP) |
Chassis |
|
---|---|
Form Factor | • 2U Rackmount |
Model | • SC825TQ-R700LPV |
Dimension and Weight |
|
---|---|
Height | • 3.5" (89mm) |
Width | • 17.2" (437mm) |
Depth | • 25.5" (648mm) |
Weight | • 55 lbs (24.9kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power fail LED |
Ports | • 2x USB Ports + DB9 COM Port (optional) |
Drive Bays |
|
---|---|
Hot-Swaps | • 8x 3.5"SATA Hot-swap drive trays • Supports up to 6x SATA hard drives |
Peripheral Drives |
|
---|---|
DVD-ROM | • Slim 8x DVD, 24x CD, DVD-ROM Drive |
Floppy | • Slim 1.44MB Floppy Drive (Optional) |
SAS/SATA Backplane |
|
---|---|
• 1x 2U SAS / SATA backplane |
System Cooling |
|
---|---|
Fans | • 3x 80mm 6300 RPM fans |
Shroud | • 1x Air Shroud |
Power Supply |
|
---|---|
700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC | |
AC Voltage | • 100 - 240V, 60-50Hz, 10 - 4 Amp |
+5V standby | • 4 Amp |
+12V | • 57 Amp |
With Power
Distributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
FAN | • Total of eight fan headers supporting up to 8 fans • Four 4-pin fan headers • Four 3-pin fan headers • 8x fans with tachometer status monitoring • Status monitor for speed control • Support 3-pin fans • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • Thermal Monitor 2 (TM2) support • PECI |
LED | • CPU / System Overheat LED |
Other Features | • Chassis intrusion detection • Chassis intrusion header • SDDC |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant 5/6, Server Exemption |
Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F)
|
