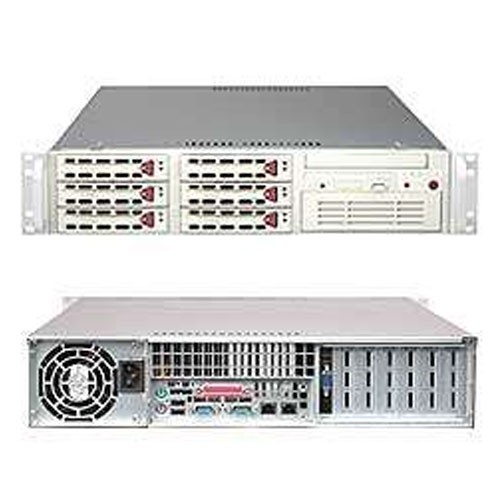

Super X7DB8 mother board and SC823S-550LP Chassis.
Product SKU |
|
---|---|
SYS-6025B-8 | • SuperServer 6025B-8 (Beige) |
SYS-6025B-8B | • SuperServer 6025B-8B (Black) |
Motherboard |
|
---|---|
Super X7DB8 |
Processor/Cache |
|
---|---|
CPU | • Dual 771-pin LGA Sockets |
System Bus | • 1333 / 1066 / 667 MHz system bus |
OS Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
---|---|
Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs • Memory Mirroring supported |
Memory Type | • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 512 MB, 1GB, 2GB, 4GB |
Memory Voltage | • 1.8 V or 1.5 V (AMB) |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® 5000P (Blackford) chipset • MCH + PXH + ESB2 |
SCSI | • Adaptec AIC-7902 Controller • Dual-Channel Ultra320 SCSI (Host RAID only supports 4 drives) • Host RAID 0, 1, & 10 support |
RAID | • Support for Zero-Channel RAID • Optional: (Card not included) • RAID 0, 1, 5, 10 |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
Network Controllers | • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller |
Graphics | • ATI ES1000 controller with 16 MB of video memory |
Super I/O | • Winbond 83627HG chip |
Input/Output |
|
---|---|
Serial ATA | • Six Serial ATA ports • Six SATA hard drives supported |
IDE | • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card • Compact Flash (40-pin connector, IDE 1, single channel) slot • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
LAN | • 2x RJ45 LAN ports |
USB | • 2x USB rear ports • 3x USB internal headers • Total 5 USB 2.0 Compliant / 1.1 Compliant |
VGA | • 1 VGA port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 1 Fast UART 16550 serial port |
Parallel Port | • 1 ECP / EEP parallel port |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
Bios Features | • Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.1 • PCI 2.2 • ACPI 1.0 • USB Keyboard support • Hardware BIOS Virus protection |
Chassis |
|
---|---|
Form Factor | • 2U Rackmount |
Model | • SC823S-550LP |
Dimension and Weight |
|
---|---|
Height | • 3.5" (89mm) |
Width | • 16.8" (426mm) |
Depth | • 25.6" (650mm) |
Weight | • 51 lbs (23.1kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
Ports | • 2x USB Ports (optional) |
Expansion Slot |
|
---|---|
PCI-Express | • 2 (x8) PCI-e slots • 1 (x4) PCI-e (using x8) slot |
PCI-X | • 2x 64-bit 133MHz PCI-X (3.3V) slots • 1x 64-bit 100MHz PCI-X (3.3V) slot |
Drive Bays |
|
---|---|
Hot-Swaps | • 6x 3.5"SCA Hot-swap drive trays |
Peripheral Bay(s) | • 1x 5.25" full-height peripheral bay |
Peripheral Drives |
|
---|---|
DVD-ROM | • Panasonic 8x DVD, 24x CD, DVD-ROM Drive |
Floppy | • TEAC 3.5" 1.44MB Floppy Drive (beige / black) |
SCA Backplane |
|
---|---|
• 1x 2U SCA backplane w/ Enclosure Management (SAF-TE) |
System Cooling |
|
---|---|
Fans | • 4x 80mm 6300 RPM fans |
Shroud | • 1x Air Shroud |
Power Supply |
|
---|---|
550W power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ] | |
AC Voltage | • 100 - 240V, 47-63Hz, 9/3.5 Amp |
DC Output | • +5V & +3.3V : Max = 50A |
+5V | • 35.0 Amp |
+5V standby | • 2.0 Amp |
-5V | • 0.8 Amp |
+12V | • 42.0 Amp |
-12V | • 1.0 Amp |
+3.3V | • 30.0 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
FAN | • Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans • 8x fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support |
LED | • CPU / System Overheat LED |
Other Features | • Chassis intrusion detection • Chassis intrusion header • SDDC |
Operating Environment / Compliance |
|
---|---|
Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F)
|
