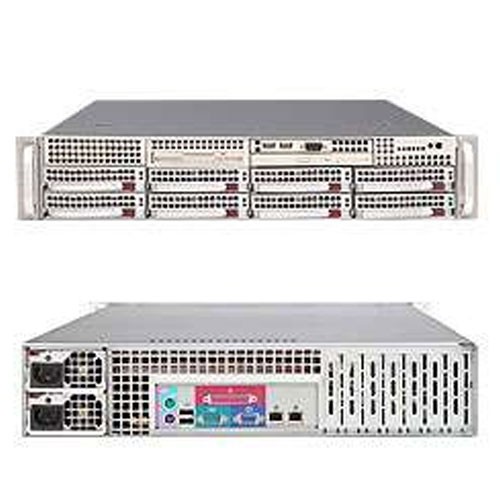

  • Supermicro 2U Rackmount Server SYS-6025B-3RV

Supermicro 2U Rackmount Server SYS-6025B-3RV

Call for price.
SKU:SYS-6025B-3RV

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 / 1333
   MHz FSB
• Up to 32GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• 2 (x8) & 1 (x4) PCI-Express,
   2x 64-bit 133MHz PCI-X,
   1x 64-bit 100MHz PCI-X Low-profile Expansion Slots
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 8 x 3.5" Hot-swap SAS Drive Trays with SES2
• 700W High-efficiency Redundant Power Supply

Details

SuperServer SYS-6025B-3RV / SYS-6025B-3RB 2U Rackmount

Supermicro SYS-6025B-3RV / SYS-6025B-3RB 2U Rackmount Barebone with 700W High-efficiency Redundant Power Supply, Intel® 5000P (Blackford) chipset, 8 x 3.5" SAS
Hot-swap drive trays using Supermicro Super X7DB3 mother board and SC825TQ-R700LPV Chassis.

Product SKU
• SuperServer 6025B-3RV (Silver)
• SuperServer 6025B-3RB (Black)
Motherboard
        Super X7DB3
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz

System Bus

• 1333 / 1066 / 667 MHz system bus

OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM sockets
• Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
• Memory Mirroring supported
Memory Type • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8 V or 1.5 V (AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset • Intel® 5000P (Blackford) chipset
• MCH + PXH + ESB2
SATA • Intel ESB2 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
SAS • Adaptec AIC-9410 Serial-Attached SCSI (SAS) Controller
• SAS Dual-Channel (internal)
• Each SAS channel supports up to 4 SAS / SATA drives for a total of up to 8 SAS or SATA hard drives
• Host RAID 0, 1, & 10 support
RAID • Support for Zero-Channel RAID
• Optional: (Card not included)
• RAID 0, 1, 5, 10
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI slot (SIMLP)
• (Optional: AOC-SIMLP-B(+))
• (Optional: AOC-SIMLP-3(+)) with 3rd LAN support

Network Controllers

• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

• ATI ES1000 controller with 16 MB of video memory

Super I/O  • Winbond 83627HG chip
Input/Output
SAS • Eight SAS / SATA (internal) ports
• Up to 8 SAS / SATA hard drives supported
Serial ATA • Six Serial ATA ports
• Six SATA hard drives supported
IDE • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Compact Flash (40-pin connector, IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB
LAN • 2x RJ45 LAN ports
USB • 2x USB rear ports
• 3x USB internal headers
• Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA • 1 VGA port
Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

Parallel Port   • 1 ECP / EEP parallel port
Chassis
Form Factor • 2U Rackmount
Model SC825TQ-R700LPV
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Weight • 53 lbs (24.0kg)
Available Color • Silver,Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power fail LED
Ports • 2x USB Ports + DB9 COM Port (optional)
Expansion Slot
PCI-Express • 2 (x8) PCI-e slots
• 1 (x4) PCI-e (using x8) slot
PCI-X • 2x 64-bit 133MHz PCI-X (3.3V) slots
• 1x 64-bit 100MHz PCI-X (3.3V) slot
Drive Bays
Hot-Swaps • 8 x 3.5" Hot-swap SAS drive trays
Peripheral Drives
DVD-ROM • Slim 8x DVD, 24x CD, DVD-ROM Drive
Floppy • Slim 1.44MB Floppy Drive (Optional)
SAS/SATA Backplane
  • 1x SAS / SATA backplane
System Cooling
Fans • 3x 80mm 6300 RPM fans
Shroud • 1x Air Shroud
Power Supply
  700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage • 100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby • 4 Amp
+12V • 57 Amp
With Power
Distributor
• +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN • Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
LED • CPU / System Overheat LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC
Operating Environment / Compliance
Environmental Spec.

• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
