Details

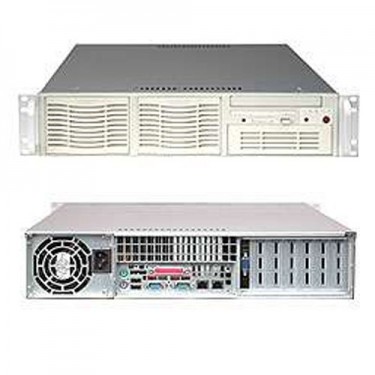

Super X6DHE-G2 mother board and SC823i-550LP Chassis.
Product SKU |
|
|---|---|
| SYS-6024H-i2 | • SuperServer 6024H-i2 (Beige) |
| SYS-6024H-i2B | • SuperServer 6024H-i2B (Black) |
Motherboard |
|
|---|---|
| Super X6DHE-G2 | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets |
| System Bus | • 800 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 16 GB DDR2 400MHz memory • Dual channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | • DDR2-400 registered ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB |
| Memory Voltage | • 1.8V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7520 chipset • MCH + ICH5R + PXH +82546GB |
| SATA | • ICH5R SATA Controller • RAID 0, 1, JBOD support |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 (Optional) |
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
| Super I/O | • National 87427 chip |
Expansion Slots |
|
|---|---|
| • 6x low-profile full-length expansion slots | |
| PCI-Express | • 2 (x8) slot • 1 (x4) slot |
| PCI-X | • 1x 64-bit 133MHz PCI-X (3.3V) slot |
Input/Output |
|
|---|---|
| Serial ATA | • Two Serial ATA ports (Two SATA hard drives supported) |
| IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| LAN | • 2x RJ45 LAN port |
| USB | • 2x USB rear ports • 3x USB internal headers • USB 2.0 Compliant / 1.1 Compliant |
| VGA | • 1x VGA Port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 2 Fast UART 16550 serial ports |
| Parallel Port | • 1 ECP/EEP parallel port
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • SC823i-550LP |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 16.8" (426mm) |
| Depth | • 25.6" (650mm) |
| Weight | • 51.5 lbs (23.4kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
| Ports | • none |
Drive Bays |
|
|---|---|
| Internal | • 2x Fixed 3-Hard Drive carriers (for total of 6 HDD support) |
| Peripheral Bay(s) | • 1x 5.25" full-height peripheral bay |
Peripheral Drives |
|
|---|---|
| Floppy | • Panasonic 3.5" 1.44MB Floppy Drive |
| CD-ROM | • TEAC Slim 24x CD-ROM drive |
System Cooling |
|
|---|---|
| Fans | • 4x 80mm 6300 RPM fans Cooling Redundancy with Fan Shroud |
Power Supply |
|
|---|---|
| 550W power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ] | |
| AC Voltage | • 100 - 240V, 47-63Hz, 9/3.5 Amp |
| DC Output | • +5V & +3.3V : Max = 50A |
| +5V | • 35.0 Amp |
| +5V standby | • 2.0 Amp |
| -5V | • 0.8 Amp |
| +12V | • 42.0 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 30.0 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby • CPU Core 3-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V • Adjustable CPU clock frequency ratio settings (via BIOS) |
| FAN | • Total of four 4-pin and four 3-pin fan headers • 8x fans with status monitoring • Status monitor with firmware/software on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connector |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor 2 support |
| LED | • CPU Overheat LED |
| Other Features | • Chassis intrusion detection |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP) |
