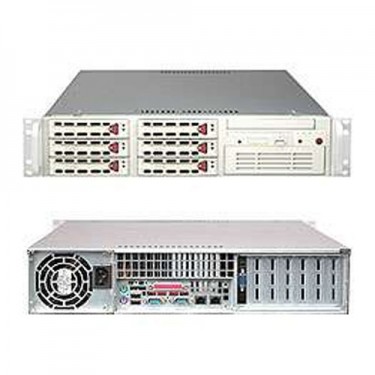

  • Supermicro 2U Rackmount Server SYS-6024H-32

Supermicro 2U Rackmount Server SYS-6024H-32

Call for price.
SKU:SYS-6024H-32

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR2-400 SDRAM
• 6 Low-Profile Expansion Slots
   2 (x8) PCI-Express,
   1 x 64-bit 133MHz PCI-X,
   2 x 64-bit 100MHz PCI-X,
   1 x 32-bit PCI
• 2 x Intel® 82541PI Single-port Gigabit Ethernet Controllers
• 6 x 3.5" Hot-swap SAS / SATA Drive Bays
• 550W power supply

Details

SuperServer SYS-6024H-32 / SYS-6024H-32B 2U Rackmount

Supermicro SYS-6024H-32 / SYS-6024H-32B 2U Rackmount Barebone with 500W power supply, Intel® E7520 chipset, 6x 3.5"SATA Hot-swap drive trays using Supermicro
Super X6DH3-G2 mother board and SC823T-550LP Chassis.

Product SKU
• SuperServer 6024H-32 (Beige)
• SuperServer 6024H-32B (Black)
Motherboard
        Super X6DH3-G2
Processor/Cache
CPU

• Dual 604-pin FC-mPGA4 Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Xeon Dual Core (Paxville) CPU with 2x2MB L2 Integrated Advanced Transfer Cache
• Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
• Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
• Xeon LV (Low Voltage) CPU, up to 2.8 GHz

System Bus

• 800 MHz system bus

OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM sockets
• Supports up to 16 GB DDR2 400MHz memory
• Dual channel memory bus
• Memory must be populated in pairs
• Single-rank modules are recommended for 6+ DIMM support
Memory Type • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 2GB
Memory Voltage • 1.8V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 Single Device Data Correction (SDDC)
On-Board Devices
Chipset • Intel® E7520 chipset
• MCH + 6300ESB + PXH/V + 82541PI
SAS • Adaptec AIC9410: Adaptec 8-port SAS Controller
• RAID 0, 1, 10, JBOD support
SATA

• 6300ESB 2-port SATA Controller

SAS ZCR

• RAID 0, 1, 5, 10, and JBOD support
• Support for Zero-Channel RAID
• Optional Card not included

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• (Optional: AOC-IPMI20-E)

Network Controllers

• Dual Intel® 82541PI Single-Port Gigabit Controller

Graphics

• ATI Rage XL SVGA PCI video controller with 8 MB of video memory

Super I/O  • Winbond 83627HF chip
Input/Output
Serial ATA / SAS • Two SAS connectors support up to 8 SAS or SATA drives
• Two SATA connectors support 2 SATA drives
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
LAN • 2x RJ45 LAN port
USB • 2x USB rear ports
• 2x USB internal headers
• USB 2.0 Compliant / 1.1 Compliant
VGA • 1x VGA Port
Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port

• 1 Fast UART 16550 serial ports
• 1 header









Chassis
Form Factor • 2U Rackmount
Model SC823T-550LP
Dimension and Weight
Height • 3.5" (89mm)
Width • 16.8" (426mm)
Depth • 25.6" (650mm)
Weight • 51 lbs (23.1kg)
Available Color • Beige,Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Ports • 2x USB Ports (optional)
Expansion Slot
PCI-Express • 2 (x8) PCI-e slots
PCI-X • 1x 64-bit 133MHz PCI-X (3.3V) slot
• 2x 64-bit 100MHz PCI-X (3.3V) slots
PCI • 1x PCI slot
• (Low-profile Add-on Cards Only)
Drive Bays
Hot-swap • 6x 3.5"SATA Hot-swap drive trays
Peripheral Bay(s)  • 1x 5.25" full-height peripheral bay
Peripheral Drives
Floppy • 3.5" 1.44MB Floppy Drive
CD-Rom • TEAC Slim 24x CD-ROM drive
Backplane
  • 1x 2U SAS Backplane (without SESII)
System Cooling
Fans • 4x 80mm 6300 RPM fans Cooling redundancy with fan shroud
Power Supply
  550W power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ]
AC Voltage • 100 - 240V, 47-63Hz, 9/3.5 Amp
DC Output • +5V & +3.3V : Max = 50A
+5V • 35.0 Amp
+5V standby • 2.0 Amp
-5V • 0.8 Amp
+12V • 42.0 Amp
-12V • 1.0 Amp
+3.3V • 30.0 Amp
System BIOS
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features • Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• ACPI 1.0
• Fan Speed Control
PC Health Monitoring
CPU • Monitors for CPU Cores, CPU0, CPU1, +3.3V, +5V, ±12V
FAN • Total of four 4-pin fan headers and four 3-pin fan headers
• 8x fans with tachometer status monitoring
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor 2 (TM2) support
Other Features

• Chassis intrusion detection
• Chassis intrusion header
