Details

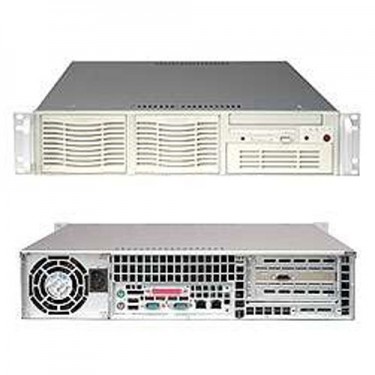

Super X5DPi-G2 mother board and SC822i-400RC Chassis.
Product SKU |
|
|---|---|
| SYS-6023P-i | • SuperServer 6023P-i (Beige) |
| SYS-6023P-iB | • SuperServer 6023P-iB (Black) |
Motherboard |
|
|---|---|
| Super X5DPi-G2 | |
Processor/Cache |
|
|---|---|
| CPU | • Dual mPGA604 ZIF Sockets |
| System Bus | • 533MHz/400MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Eight 184-pin DIMM sockets • Supports up to 16 GB DDR266/200 memory • Dual channel memory bus • Memory must be populated in pairs |
| Memory Type | • DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7501 chipset • MCH + ICH3-S + P64H2 |
| IPMI | • Support for Intelligent Platform Management Interface v.1.5 (Optional) |
| Network Controllers | • Dual Intel® 82546EB Gigabit Ethernet |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Expansion Slot |
|
|---|---|
| • 3x full-height, full-length 64bit 133/100MHz PCI-X expansion slots (Riser card required) | |
Input/Output |
|
|---|---|
| PCI Expansion | • 1x 64-bit 133/100MHz PCI-X (3.3V) slot |
| IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| USB | • 2 USB ports |
| Serial Port | • 2 Fast UART 16550 serial ports |
| Parallel Port | • 1 ECP/EEP parallel port |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
System Bios |
|
|---|---|
| Bios Type | • 4Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP)
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • SC822i-400RC |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 16.8" (426mm) |
| Depth | • 25.6" (650mm) |
| Weight | • 49 lbs (22.3kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
Drive Bays |
|
|---|---|
| Internal Bay(s) | • 6 x 3.5" IDE Drive Bays |
| Peripheral Bay(s) | • 1x 5.25" full-height peripheral bay |
System Cooling |
|
|---|---|
| Fans | • 4x 80mm blower fans |
Power Supply |
|
|---|---|
| 2U 400W AC power supply w/ PFC | |
| AC Voltage | • 100 - 240V, 50/60Hz, 7 Amp |
| DC Output | • 12V + 5V + 3.3V ≤ 385W |
| +5V | • 33.0 amp |
| +5V standby | • 2.0 Amp |
| -5V | • 0.8 amp |
| +12V | • 25.0amp |
| -12V | • 1.0 Amp |
| +3.3V | • 28.0 amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5, ±12V, 3.3V Standby • CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V • Adjustable CPU clock frequency ratio settings (via BIOS) |
| FAN | • Total of seven 3-pin fan headers • 3x fans with tachometer monitoring • Overheat backup fan connector • Status monitor with firmware/software on/off control |
| Temperature | • Monitoring for CPU, chassis, environment • CPU thermal trip support |
| LED | • CPU Overheat LED |
| Other Features | • Chassis intrusion detection (through LDCM) |
