  • Supermicro 2U Rackmount Server SYS-5025M-i+B

Supermicro 2U Rackmount Server SYS-5025M-i+B

Call for price.
SKU:SYS-5025M-i+B

Quick Overview:

Key Features:
• Xeon® 3200/3000 Series, Pentium® D, Pentium 4, Pentium Extreme
   Edition,& Celeron D in LGA775 Package (FSB 1066/800/533)
• Up to 8GB unbuffered ECC / non-ECC DDR2 667/533 SDRAM
• 1 (x4) & 1 (x8) PCI-Express
   2x 64-bit 133MHz PCI-X
   2x 64-bit 100MHz PCI-X
• Intel® 82573V + Intel® 82573L PCI-e Gigabit Controllers (2x LAN Ports)
• 2x IDE Drive Carrier (Capacity of 3 Hard Drives each)
• 550W Power Supply

Details

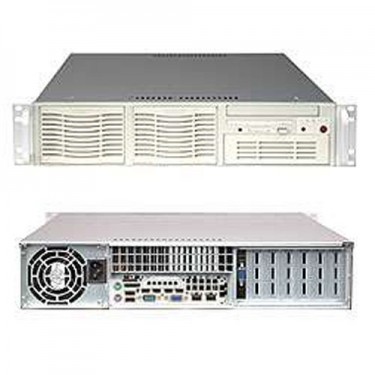

SuperServer SYS-5025M-i+ / SYS-5025M-i+B 2U Rackmount

Supermicro SYS-5025M-i+ / SYS-5025M-i+B 2U Rackmount Barebone with 550W Power Supply,Intel 3010 (Mukilteo-2P) chipset, 2x Internal 3-Hard Drive carriers using Supermicro
Super PDSME+ motherboard and SC823i-550LP Chassis.

Product SKU
• SuperServer 5025M-i+ (Beige)
• SuperServer 5025M-i+B (Black)
Motherboard
        Super PDSME+
Processor/Cache
CPU

• Single LGA775 ZIF Socket
• Supports an Intel® Xeon® 3200 Series quad-core processor
• Supports an Intel® Xeon® 3000 Series (Conroe) dual-core processor
• Supports an Intel® Pentium® D dual-core processor
• Supports an Intel® Pentium® Extreme Edition processor
• Supports an Intel® Pentium® 4 processor
• Supports an Intel® Celeron® D processor
• Hyper-Threading (HT) capable

System Bus • 1066 / 800 / 533 MHz system bus
System Memory
Memory Capacity • Four 240-pin DIMM sockets
• Supports up to 8 GB of memory (Single / Dual Channel)
Memory Type • DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1 GB, 2GB
Memory Voltage • 1.8V only
On-Board Devices
Chipset • Intel 3010 (Mukilteo-2P) chipset
• ICH7R + PXH + Intel® 82573V + Intel® 82573L
Serial ATA

• Intel® ICH7R SATA controller built-in (3 Gbps)
• RAID 0, 1, 5, 10 support (Windows Only)
• RAID 0, 1, 10 support (Linux)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support
• SIM1U Slot - Supermicro Intelligement Management
• (Optional: AOC-SIM1U+)

Network Controllers

• 2x Single-port Gigabit PCI-Express Ethernet Controllers
• Intel® 82573V + Intel® 82573L
• Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output

VGA

• On-board ATI ES1000 (16MB) graphics

Super I/O • Winbond 83627HG chip
Clock Generator • CK410
Input/Output
Serial ATA • Four Serial ATA ports (3 Gbps performance)
• Four SATA hard drives supported
IDE • One EIDE channel supports up to two UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB
LAN • 2x RJ45 LAN ports
USB • Up to 4x USB 2.0 / 1.1 compliant ports
• 2 rear ports
• 1 internal header for 2 ports
VGA

• 1x VGA port

Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port • 1x Fast UART 16550 serial port
• 1x internal header
Parallel Port • 1x internal header for ECP / EPP parallel port
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix BIOS®
Bios Features

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• SMBIOS 2.3
• USB Keyboard support



Chassis
Form Factor • 2U Rackmount
Model SC823i-550LP
Dimension and Weight
Height • 3.5" (89mm)
Width • 16.8" (426mm)
Depth • 25.6" (650mm)
Weight • 55 lbs (24.9kg)
Available Color • Beige,Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Expansionn Slot
PCI-Express • 1 (x4) PCI-e slot
• 1 (x8) PCI-e slot
PCI-X • 2x 64-bit 133MHz PCI-X (3.3V) slots
• 2x 64-bit 100MHz PCI-X (3.3V) slots
Drive Bays
Fixed • 2x Internal 3-Hard Drive carriers (for total of 6 HDD support)
Peripheral Bay(s)  • 1x 5.25" full-height peripheral bay
Peripheral Drives
Floppy • Panasonic 3.5" 1.44MB Floppy Drive
CD-ROM • Slim 24x CD-ROM Drive
System Cooling
Fans • 4x 80mm 6300 RPM fans
Power Supply
  550W power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ]
AC Voltage • 100 - 240V, 47-63Hz, 9/3.5 Amp
DC Output • +5V & +3.3V : Max = 50A
+5V • 35.0 Amp
+5V standby • 2.0 Amp
-5V • 0.8 Amp
+12V • 42.0 Amp
-12V • 1.0 Amp
+3.3V • 30.0 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores (+1.5V, +1.8V, +3.3V, +5, ±12V, +5V Standby, VBAT)
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V
FAN • Total of six 4-pin fan headers
• 6x fans with tachometer monitoring
• Status monitor with firmware / software speed control
• Status monitor for on/off control
• Support 3-pin fans (with speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connector
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip support
• Thermal Monitor (TM2) Support
LED

• CPU / System Overheat LED
• Standby alert LED
• Suspend-state indicator LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header
