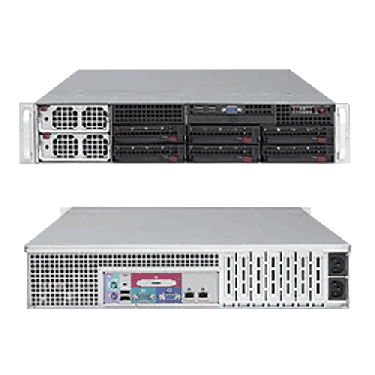

Supermicro 2U Rackmount Server A+ AMD Opteron AS-2041M-T2R+B

More Views

Supermicro 2U Rackmount Server A+ AMD Opteron AS-2041M-T2R+B

Description

Details

Supermicro 2U Rackmount Server A+ AMD Opteron AS-2041M-T2R+B

Product SKU
AS-2041M-T2R+B	• A+ Server 2041M-T2R+B (Black)

Motherboard
	• Super H8QMi-2

Processor/Chipset
CPU	• Quad 1207-pin Socket F • Supports up to four Six-Core AMD Opteron™ 8000 Series (Socket F) processors • HT3.0 Link support
Chipset	• nVidia MCP55 Pro • IO 55 • NEC uPD720400

System Memory
Memory Capacity	• Thirty-two 240-pin DIMM sockets • Supports up to 256GB DDR2 800/667/533/400* MHz memory • Single or Dual (recommended) channel memory support • For Quad CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	• DDR2 800/667/533/400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 256MB, 512MB, 1GB, 2GB, 4GB **
Memory Voltage	• 1.8V only
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memor

On-Board Devices
SATA	• nVidia MCP55 Pro SATA2 3.0Gbps Controller • 6 SATA2 Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1, 5 JBOD Support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI slot • (Optional: AOC-SIMLC R 3.00) • (Optional: AOC-SIM1U+ R 3.00) • RMM (Remote Management Module) • (Card not included) • Note: Dedicated LAN connection is required for KVM-over-LAN function.
Network Controllers	• Intel® 82546GB Dual Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Super I/O	• Winbond 83627HG
VGA	• ATI ES1000 Graphics Controller

Input/Output
SATA	• 6 SATA2 ports
IDE	• Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100 / 133
Floppy	• 1 Floppy port; 1.44 MB support
LAN	• 2 RJ45 LAN ports
USB	• Up to 4 USB Ports 2.0/1.1 Compliant • 2 Rear Ports • 2 Internal Headers
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Ports	• 1 Fast UART 16550 serial port • 1 Header
VGA	• 1 VGA port

System BIOS
BIOS Type	• 8Mb Flash EEPROM with AMI® BIOS • SST 49LF080A BIOS Chip
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 2.0/1.0 • USB Keyboard Support • SMBIOS 2.3

Chassis
Form Factor	• 2U Rackmount
Model	• SC828TQ-R1200LPB

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 27.75" (708mm)
Gross Weight	• 69 lbs (31.3kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power fail LED
Ports	• 2x USB Ports + DB9 COM Port

Expansion Slots
PCI-Express	• 2 x16 PCI-e Slots • 1 x8 PCI-e Slot • 1 x4 PCI-e Slot (Using x8 Slot)
PCI-X	• 1 64-bit 133 MHz PCI-X (3.3V) slots • OR 1 SIMLC Slot

Drive Bays
Hot-swap	• 6 x 3.5" SATA Hot-swap drive trays • Supports up to 6x SATA hard drives

Peripheral Drives
DVD-ROM	• Slim 8x DVD, 24x CD, DVD-ROM Drive
Floppy	• Slim 1.44MB Floppy Drive (Optional)

SATA Backplane
	• 1x 2U SATA backplane with Enclosure Management (SGPIO)

System Cooling
Fans	• 6x 80mm 6500 RPM fans
Shroud	• 1x Air Shroud

Power Supply
	1200W (1 + 1) Redundant high-efficiency power supply w/ PFC
1200W
+5V standby	• 4 Amp
+12V	• 100 Amp
900W
+5V standby	• 4 Amp
+12V	• 74 Amp

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +3.3V, +5V, +12V, +5V Standby, VBAT • CPU 5-Phase-switching voltage reulator
FAN	• Total up to 9-fan status tachometer monitoring • Up to nine 3-pin fan headers • Status monitor for speed control • Support 3-pin fans with fan-speed control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • PC Temperature Sensing Logic
LED	• CPU / System Overheat LED • +5V Standby Alert LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
