Details
|
Product SKU
| |
|---|---|

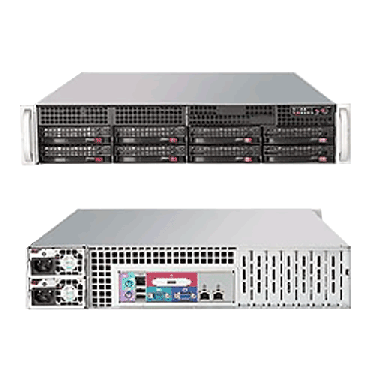

| AS-2021A-32R+F | • A+ Server 2021A-32R+F (Black) |
|
Motherboard
| |
|---|---|
| • Super H8DI3+-F | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Dual 1207-pin Socket F • Supports up to two Six-Core / Quad-Core AMD Opteron™ 2000 Series processors** • HT3.0 Link support |
| Chipset | • AMD chipset SR5690/SP5100 |
|
System Memory
| |
|---|---|
| Memory Capacity | • Sixteen 240-pin DIMM sockets • Support up to 128GB DDR2 800/667/533 MHz memory • Dual channel memory bus • Single or Dual (recommended) channel memory support • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR2 800/667/533 MHz Registered ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB |
| Memory Voltage | • 1.8V only |
|
On-Board Devices
| SATA | • AMD SP5100 (RAID 0, 1, 10) | SAS | • LSI 1068E 8 port SAS controller • RAID 0, 1, 10; RAID 5 Optional • IButton68 (Optional: AOC-IButton68) RAID 5 support |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Winbond® WPCM450 BMC |
|---|---|
| Network Controllers | • Two Intel® 82574L controller, Dual-Port
Gigabit Ethernet • 10/100/1000BASE-T support |
| VGA | • Matrox G200 16MB DDR2 16MB Graphics & VGA port |
| Super I/O |
• AMD SP5100 chip |
|
Input/Output
| SATA | • 6x SATA2.0 (3Gb/s) Ports | SAS | • Integrated LSI 1068E SAS Controller • Eight Serial Attached SCSI (SAS) ports |
|---|---|
| IDE | • Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133 |
| LAN | 6x USB 2.0 ports• 2 RJ45 LAN ports |
| Floppy | • 1 Floppy port, 1.44 MB |
| USB | • 6x USB 2.0 ports • 2x Rear / 2x header / 2x type A |
| VGA | • 1x VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1x Fast UART 16550 serial port • 1x serial port header |
|
System BIOS
| |
|---|---|
| BIOS Type | • 16Mb SPI Flash ROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • SC825TQ-R720LPB |
|
Dimension and Weight
| |
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 56 lbs (23.6 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
| Ports | • 2x USB Ports + DB9 COM Port (optional) |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 8x 3.5" SAS / SATA Hot-swap drive trays |
|
Peripheral Drives
| |
|---|---|
| DVD-ROM | • Slim DVD/CD-ROM Drive (Optional) |
| Floppy |
• Slim 1.44MB Floppy Drive (Optional) |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 3x PCI-e 2.0 x8 (two in x16) slots |
| PCI-X |
• 2x PCI-X 64-bit 133/100MHz slots |
|
SAS Backplane
| |
|---|---|
• 1x 2U SAS backplane w/ Enclosure Management |
|
|
System Cooling
| |
|---|---|
| Fans | • 3x 80x38mm 4-pin PWM Fans |
|
Power Supply with Power Distributor
| |
|---|---|
| 720W (1+1) Redundant high-efficiency power supply with PMBus | |
| AC Input | • 100-240 V, 50-60 Hz, 4-9 Amp |
| DC Output |
• 3 Amp @ +5V standby • 59 Amp @ +12V |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
| Certification | • 80Plus Gold Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT |
| FAN | • Total up to 8-fan status tachometer monitoring • Status monitor for speed control • 4-pin fan support • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • +5V Standby Alert LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header • Chipkill Support |
