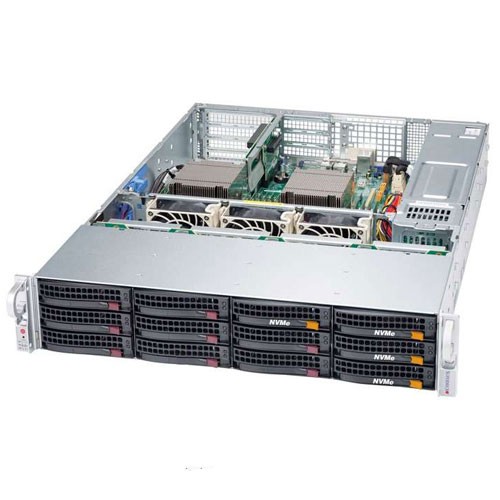

  • Supermicro 2U Rackmount SYS-6028R-TDWNR - Angle

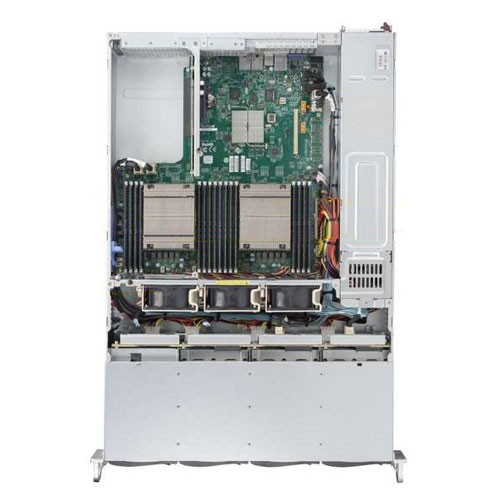

  • Supermicro 2U Rackmount SYS-6028R-TDWNR - Top

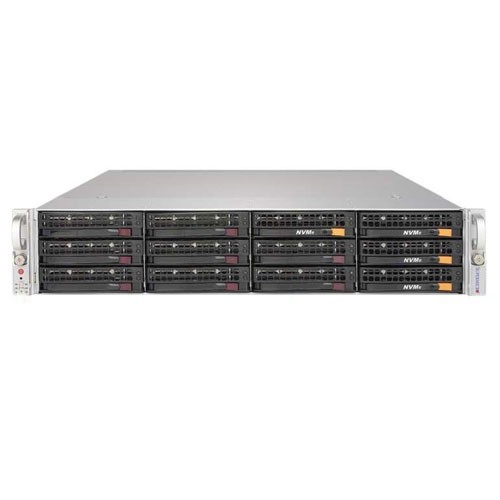

  • Supermicro 2U Rackmount SYS-6028R-TDWNR - Front

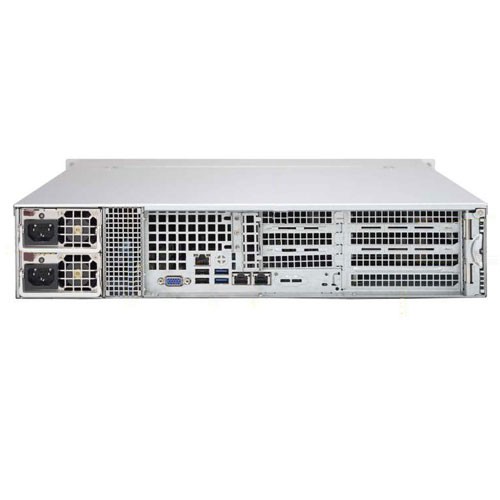

  • Supermicro 2U Rackmount SYS-6028R-TDWNR - Rear

Supermicro 2U Rackmount NVME Ultra Server SYS-6028R-TDWNR

Call for price.
SKU:SYS-6028R-TDWNR

Quick Overview:

Key Features:
• Data Center Optimized
• Support 4x 2.5" NVMe Drive Bays
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x
   DIMM slots
• 1x PCI-E 3.0 x16 (FHHL) 2x PCI-E 3.0 x8 (FHHL) 1x PCI-E 3.0 x8 (LP)
• 8x 3.5" Hot-swap SATA3 + 4x 2.5" NVMe Drive Bays
• Intel® i350 Dual-Port 1GbE LAN
• I/O ports: 1x VGA, 2x USB 3.0, 2x USB 2.0
• 920W Redundant Power Supplies Platinum Level Certified
• 2x SuperDOM (Disk on Module) ports
• IPMI 2.0 + KVM with Dedicated LAN

Details

SuperServer SYS-6028R-TDWNR

Supermicro SYS-6028R-TDWNR 2U Rackmount Barebone with 920W Redundant Power Supplies, Intel® C612 chipset support 8x 3.5" Hot-swap SATA3 + 4x 2.5" NVMe Drive Bays
using Supermicro Super X10DDW-iN Server Motherboard and CSE-826BAC4-R920WB 2U Rackmount Chassis.

Product SKU
• SuperServer 6028R-TDWNR (Black)
Motherboard
        Super X10DDW-iN
Processor/Cache
CPU

• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)

Cores/Cache

• Up to 22 Cores† / Up to 55MB† Cache

System Bus

• QPI up to 9.6 GT/s

Note

• † BIOS version 2.0 or above is required





* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Connectivity

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)

Graphics • ASPEED AST2400 BMC
Input/Output
SATA

• 8x SATA3 (6Gbps) ports
• I-SATA 4 & I-SATA 5 support SATA DOM

NVMe • 4x Internal NVMe ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 3x USB 3.0 ports (2 rear, 1 Type A)
• 4x USB 2.0 ports (2 rear, 2 headers)
Video • 1x VGA port
Serial Port/Header • 1x COM port (header)
DOM

• 2x SuperDOM (Disk on Module) ports

Management
Software • IPMI 2.0
• Intel® Node Manager
• SuperDoctor® 5
• SSM
• SPM
• SUM
• Watch Dog
Power Configurations

• ACPI Power Management
• Power-on mode for AC power recovery







Chassis
Form Factor • 2U Rackmount
Model CSE-826BAC4-R920WB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 64 lbs (29.0 kg)
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
• Power fail LED
Expansion Slot
PCI-Express • 1 PCI-E 3.0 x16 (FHHL) slot
• 2 PCI-E 3.0 x8 (FHHL) slots
• 1 PCI-E 3.0 x8 (LP) slot




(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-Swaps • 8x 3.5" Hot-swap SATA3 Drive Bays
• 4x 2.5" NVMe Drive Bays
Backplane
  • SAS3/SATA3 Backplane
• 4x 2.5" NVMe drives
System Cooling
Fans • 3x 8cm fans with optimal fan speed control
Power Supply
  920W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC
AC Input • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output • +5V standby: 4A
• +12V: 75A
with Power Distributor • +5V: 45A
• +3.3V: 24A
• -12V: 0.6A
Certification • Platinum Certified
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• BIOS resuce hot keys
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
