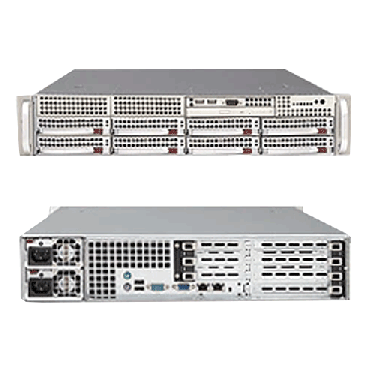

  • Supermicro 2U Rackmount A+ AMD Opteron Server AS-2021M-UR+B

Supermicro 2U Rackmount A+ AMD Opteron Server AS-2021M-UR+B

Call for price.
SKU:AS-2021M-UR+B

Quick Overview:

Key Features:
• Supports 2x Six-Core AMD Opteron™ 2000 processor
• Up to 128GB of memory
• 1 Universal I/O (UIO) Slot
• 8 x 3.5" Hot-swap SAS/SATA Hard Drive Bays
• 3 (x8) PCI-E Full-height / full-length Slots
• 700W High-efficiency Redundant Power Supply

Details

Supermicro 2U Rackmount A+ AMD Opteron Server AS-2021M-UR+V

Product SKU
• A+ Server 2021M-UR+V (Silver)
• A+ Server 2021M-UR+B (Black)
Motherboard
  • Super H8DMU+
Processor/Chipset
CPU • Dual 1207-pin Socket F
• Supports up to two Six-Core AMD Opteron™ 2000 Series (Socket F) processors
• HT3.0 Link support
Chipset • nVIDIA MCP55Pro
System Memory
Memory Capacity • Sixteen 240-pin DIMM sockets
• Capacity Sixteen 240-pin DIMM sockets Supports up to 128GB DDR2 800/667/533/400 MHz memory
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
• Dual channel memory bus
Memory Type

• DDR2 800/667/533/400 MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB, 4GB

Memory Voltage

• 1.8V only

On-Board Devices
SATA • nVidia MCP55 Pro SATA2 3.0Gbps Controller
• 6 SATA Ports
• nVidia Host RAID 2.0
• SATA RAID 0, 1, 0+1, 5, JBOD Support
IPMI • Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI slot (SIMSO)
• (Optional: AOC-SIMSO(+) R 3.00)
• RMM (Remote Management Module)
• (Card not included)
• For dedicated LAN, CBL-0177L must be used (Cable not included)
Network Controllers • nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA

• ATI ES1000 Graphics Controller

Super I/O

• Winbond 83627HF

Input/Output
SATA • 6 SATA2 ports
IDE • Single EIDE channel support up to two UDMA IDE devices
• Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports ATA 100/133
Floppy • 1 Floppy port; 1.44 MB support
LAN • 2 RJ45 LAN ports
USB • FUCI
• Up to 6 USB Ports 2.0 Compliant
• 2 Rear Ports
• 4 Internal Headers
VGA • 1 VGA port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 1 Fast UART 16550 serial port
• 1 serial port header
Others • 1 UID
System BIOS
BIOS Type

• 8Mb Flash EEPROM with AMI® BIOS

BIOS Features











• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• BIOS Rescue Hot Keys
• USB Keyboard Support
• Hardware BIOS Virus Protection
• SMBIOS 2.3




Chassis
Form Factor • 2U Rackmount
Model SC825TQ-R700UV
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 56 lbs (25.4kg)
Available Colors • Silver, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power fail LED
• Universal Information (UID) LED

Ports • 2x USB Ports + DB9 COM Port

Expansion Slots
PCI-Express

• 1 Universal I/O (UIO) Slots
• 3 (x8) PCI-E Full-height / Full-length Slots
• 1 (x8) PCI-E Low-profile Slot
• 1 (x4) PCI-E Low-profile Slot

IPMI

• IPMI 2.0 expansion slot

Drive Bays
Hot-swap

• 8 x 3.5" SATA Hot-swap drive trays

Peripheral Drives
DVD-ROM

• Slim 8x DVD, 24x CD, DVD-ROM Drive

Floppy

• Slim 1.44MB Floppy Drive (Optional)

SAS / SATA Backplane


• 1x 2U SAS / SATA backplane with Enclosure Management (SGPIO)

System Cooling
Fans

• 3x 80mm 6300 RPM fans

Shroud

• 1x Air Shroud

Power Supply
  700W AC-DC power supply and power distributor w/ PFC
AC Input • 100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby
• 4 Amp
+12V • 57 Amp
With Power
Distributor
• +5V: 24 Amp
• +3.3V: 21 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, ±12V, +5V Standby, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage
• CPU 4-Phase-switching voltage reulator

FAN • Total up to 8-fan status tachometer monitoring
• Up to two 4-pin and six 3-pin fan headers
• Status monitor for speed control
• Stauts monitor for on/off control
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal Control for 8x Fan Connectors
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
• Suspend-State Indicator LED
• +5V Standby Alert LED
• UID/Remote LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
Operating Environment / Compliance
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
