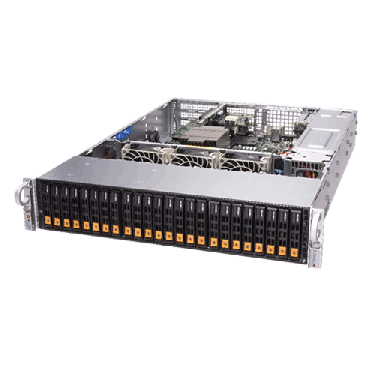

  • Supermicro 2U Rackmount A+ AMD EPYC Servers AS-2113S-WN24RT ANgle
  • Supermicro 2U Rackmount A+ AMD EPYC Servers AS-2113S-WN24RT Top

Supermicro 2U Rackmount A+ AMD EPYC Servers AS-2113S-WN24RT

Call for price.
SKU:AS-2113S-WN24RT

Quick Overview:

Key Features:
• Hyperconverged Storage
• Single AMD EPYC™ 7000-Series Processor
• Up to 2TB of memory
• Expansion slots: 1 PCI-E 3.0 x16 (FH/HL) slot
• 24 hot-swap 2.5" U.2 NVMe drive bays
• 1200W Redundant Power Supplies
   Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with 1 CPU, minimum 8 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU. Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro 2U Rackmount A+ AMD EPYC Servers AS-2113S-WN24RT

Product SKU
• A+ Server 2113S-WN24RT
Motherboard
  • H11SSW-NT
Processor/Chipset
CPU • Single AMD EPYC™ 7000-series Processor
• Socket SP3
Cores • Up to 32 Cores
Note Please contact Will Jaya Technical Support for specifics on high power processor support
System Memory
Memory Capacity • 16 DIMM slots
• Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM
• 8-channel memory bus
Memory Type

• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs

Memory Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
Network Controllers • Broadcom BCM57416 Controller
VGA • ASPEED AST2500 BMC
Expansion Slots
PCI Express

• 1 PCI-E 3.0 x16 (FH/HL) slot

M.2

• Interface: PCI-E 3.0 x4 (NVMe based)
• Form Factor: 2280, 22110
• Key: Onboard M-key
• Number of M.2: Dual

Input/Output
NVMe • Up to 24 U.2 NVMe support
LAN • 2x 10GbBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 5 USB 3.0 ports (4 rear + 1 Type A)
VGA • 1 VGA port
Others • 1 COM port
• 2 SATA DOM power connectors
• TPM 1.2 header
System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM

BIOS Features















• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS 3.1.1











Chassis
Form Factor • 2U
Model CSE-216BTS-R1K23WBP
Dimension and Weight
Width • 3.5" (89mm)
Height • 17.2" (437mm)
Depth • 24.8" (630mm)
Gross Weight • 59 lbs (26.76 kg)
Available Colors • N.A.
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED

Drive Bays
Hot-swap

• 24 hot-swap 2.5" U.2 NVMe drive bays

System Cooling
Fans

• 3 heavy-duty PWM fans with optimal fan speed control

Air Shroud

• 1 Air Shroud

Power Supply (76mm Width)
  1200W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1200W
Dimension
(W x H x L)
• 76 x 40 x 336 mm
Input • 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
• 200-240Vdc / 8.5-7A (for CCC only)
+12V • Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
• Max: 100A / Min: 0A (200-240Vdc)
+5Vsb • Max: 4A / Min: 0A
Output Type • 19 Pairs Gold Finger Connector
Certification • 80Plus Titanium Level
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
• CPU switching voltage regulator

FAN

• Up to 6-fan status tachometer monitoring
• Up to six 4-pin fan headers
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 6x Fan connectors
• I²C Temperature Sensing Logic

LED

• CPU / System Overheat LED

Other Feature

• Chassis Intrusion Detection
• Chassis Intrusion Header

Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
