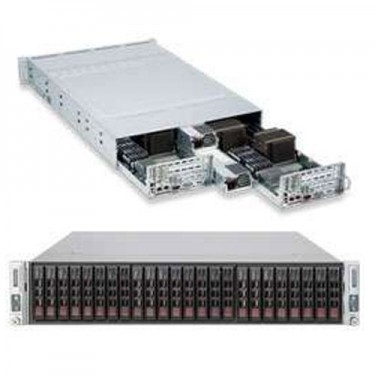

  • Supermicro 2U MultiNode Rackmount Server SYS-2026TT-DLIBXRF

Supermicro 2U MultiNode Rackmount Server SYS-2026TT-DLIBXRF

$0.00
SKU:SYS-2026TT-DLIBXRF

Quick Overview:

Key Features:
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• 12 DIMM, up to 192GB DDR3 1333/ 1066/800 MHz ECC Reg. memory
• 2 (x8) PCI-E 2.0 (in x16, low-profile)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Dual Intel® 82574L Gigabit Ethernet Controller
• 12x 2.5" Hot-swap SAS2/SATA/SSD HDDs (24 total)
• One LSI 2008 adapter card
• 1400W Gold-level High-efficiency Redundant Power Supply
• Mellanox ConnectX DDR Infiniband 20Gbps Controller w/ QSFP connector

Details

SuperServer SYS-2026TT-DLIBXRF 2U Rackmount

Supermicro SYS-2026TT-DLIBXRF 2U Rackmount Barebone with 1400W Gold-level High-efficiency Redundant Power Supply, Intel® 5520 (Tylersburg) chipset, support 12x 2.5"
SAS2/SATA Hot-swap drive bays using Supermicro 4x Super X8DTT-HEF+ Motherboard and CSE-827HQ-R1400B 2U Chassis.

Product SKU
• SuperServer 2026TT-DLIBXRF (Black)
Motherboard
        2x Super X8DTT-HIBXF+
Processor/Cache
CPU

• Dual 1366-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 95W
• Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W

QPI

• up to 6.4 GT/s

System Memory
Memory Capacity • 12x 240-pin DIMM slots
• Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory
• Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
• Memory Mirroring supported
Memory Type • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 1GB, 2GB, 4GB , 8GB** , 16GB**
Memory Voltage • 1.5 V / 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices (per node)
Infiniband • Mellanox ConnectX DDR Infiniband 20Gbps Controller
Chipset • Intel® 5520 (Tylersburg) chipset
• ICH10R + IOH-36D
SATA • Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
SAS • LSI 6Gbps SAS 2008 IT Mode BPN-ADP-E16-L
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Dual Intel® 82574L Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Super I/O  • Winbond W83527HG chip
Clock Generator  • 932S421 chip
Input/Output (per node)
SAS2 • 6x SAS2 ports
• 6x SAS2 hard drives supported
LAN • 2x RJ45 LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2 rear + 1 header (2 Ports)
• 4 total USB ports, 2.0 Compliant / 1.1 Compliant
VGA • 1 VGA port
Serial Port/Header

• 1 Fast UART 16550 serial port

Infiniband

• 1 External QSFP Infiniband Connector

System Bios (per node)
Bios Type • 32Mb SPI Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support



Chassis
Form Factor • 2U Rackmount
Model CSE-217HD-R1400B
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 26.75" (679mm)
Weight • 85 lbs (38.6kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LED • Power status LED
• Network activity LED
• System Overheat/fan fail/power fail/ LED
• UID LED (on UID button)
Expansion Slot (per node)
PCI-Express

• 2 (x8) PCI-E 2.0 (in x16, low-profile)

Drive Bays (per node)
Hot-Swaps • 12x 2.5" SAS2/SATA Hot-swap drive bays
Hard Drive Backplane
  • 2U Hard drive Backplane for 24x 2.5" HDD
System Cooling
Fans • 4x 8cm 9.5K RPM 4-pin PWM Cooling Fans
Power Supply
  1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input • 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz
• 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output • 1100W: +12V/92A; +5Vsb/4A
• 1400W: +12V/116A; +5Vsb/4A
With Ditributor • +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
Certification • Gold Certified
PC Health Monitoring
CPU • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
• CPU Core 6-Phase-switching voltage regulator
FAN • Total of four 4-pin PWM fans
• 4x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 4x Fan Connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI
LED • Power Fail / Overheat LED
• Suspend-state Indicator LED
• UID LED
Other Features • SDDC Support
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
