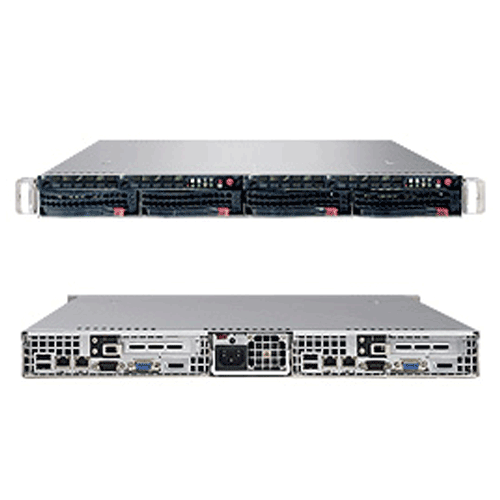

Supermicro 1U Twin Multi-Node Rackmount SYS-6015TW-TB Server

Call for price.

SKU:SYS-6015TW-TB

Quick Overview:

Key Features:
Two systems (nodes) in a 1U form factor. Each node supports the following:
• Quad & Dual Core Intel® 64-bit Xeon® Support 1066 / 1333 /
1600 MHz FSB
• Up to 64GB DDR2 800/667/533 SDRAM Fully Buffered DIMM (FB-DIMM)
• 1 (x16) PCI-Express Generation II
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 2x Hot-swap SATA Drive Bays
• 980W High-efficiency Power Supply

Description

Details

SuperServer SYS-6015TW-TB / SYS-6015TW-TV 1U Rackmount

Supermicro SYS-6015TW-TB / SYS-6015TW-TV 1U Rackmount with 980W High-efficiency Power Supply, Intel® 5400 (Seaburg) chipset, support 2x 3.5" SATA Hot-swap drive bays,
using Super X7DWT + Super X7DWT Motherboard and SC808T-980B Rackmount Chassis

Product SKU
SYS-6015TW-TB	• SuperServer 6015TW-TB (Black)
SYS-6015TW-TV	• SuperServer 6015TW-TV (Silver)

Motherboard
	Super X7DWT + Super X7DWT

Processor/Cache
CPU	• Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300LV sequence (Harpertown /Clovertown processor) up to 3.20 GHz • Dual-Core Intel® Xeon®Processor 5200/5100LV sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz
System Bus	• 1600 / 1333 / 1066 MHz system bus

System Memory
Memory Capacity	• Eight 240-pin DIMM sockets • Supports up to 64 GB 800 / 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs • Memory Sparing supported
Memory Type	• 800 / 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 512 MB, 1GB, 2GB, 4GB, 8GB**
Memory Voltage	• 1.8 V or 1.5 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5400 (Seaburg) chipset • ESB2
SATA	• Intel ESB2 SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Windows only) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0, v.1.5 • 200-pin IPMI slot (SIMSO(+)) • (Optional: AOC-SIMSO(+))
Network Controllers	• 2Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	• ATI ES1000 controller with 32 MB of video memory
Super I/O	• Winbond 83627HF chip
Clock Generator	• CK410B

Input/Output
Serial ATA	• Four Serial ATA ports
LAN	• 2x RJ45 LAN ports
USB	• 2x USB rear ports • 2x USB internal headers • Total 4 USB 2.0 Compliant
VGA	• 1x VGA Port
Serial Port	• 1 Fast UART 16550 serial port

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 1.0/2.0 • USB Keyboard support • SMBIOS 2.3

System Bios

Bios Type

• 8Mb Flash EEPROM with Phoenix® BIOS

Bios Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0/2.0
• USB Keyboard support
• SMBIOS 2.3

Chassis
Form Factor	• 1U Rackmount
Model	• SC808T-980B

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.75" (705mm)
Weight	• 40 lbs (18.1kg)
Available Color	• Black

Front Panel (per node)
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots (per node)
PCI-Express	• 1 (x16) PCI-e Generation II slot

Drive Bays (per node)
Hot Swap	• 2x 3.5" SATA Hot-swap drive bays

SATA Backplane
	• 1U SATA Backplane

System Cooling
Fans	• 6x Cooling Fans

Power Supply
	980W AC-DC power supply w/ PFC
AC Voltage	• 100 - 240V, 60-50Hz, 14-6 Amp
+5V sb	• 4 Amp
+12V	• 81 Amp

Management
Software	• Optional IPMI (Intelligent Platform Management Interface) 1.5 / 2.0 • SuperDoctor® III • Watch Dog • NMI
Power Configuration	• ACPI Power Management • Main Switch Override Mechanism • Wake-On-Ring (WOR) header • Wake-On-LAN (WOL) header • Power-on mode for AC power recovery • Internal / External modem remote ring-on

PC Health Monitoring
CPU	• Monitors for CPU Cores,+1.5V, +3.3V, +5V, ±12V, +3.3V Stdby, +5 Stdby, VBAT, HT, Memory, Chipset • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	• Total of four proprietary fan headers supporting up to 8 fans • 8x fans with tachometer status monitoring • Status monitor for speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• CPU / System Overheat LED
Other Features	• Chassis intrusion detection • Chassis intrusion header

Operating Environment / Compliance
RoHS	• RoHS Compliant 5/6, Server Exemption
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
