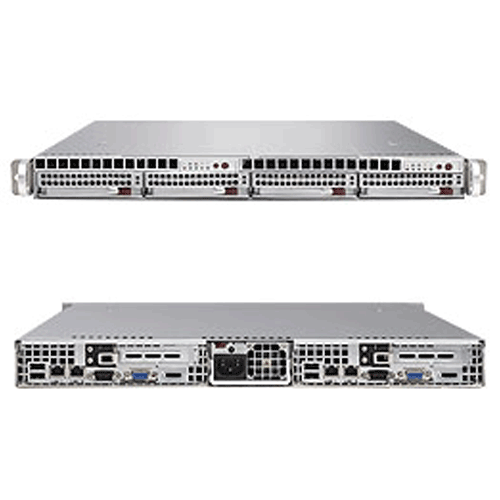

Supermicro 1U Twin Multi-Node Rackmount SYS-6015T-TV Server

Call for price.

SKU:SYS-6015T-TV

Quick Overview:

Key Features:
Two systems (nodes) in a 1U form factor. Each node supports the following:
• Dual-processor Quad & Dual Core Intel® 64-bit Xeon® Support, 667 / 1066
/ 1333MHz FSB
• Up to 32GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• 1 (x8) PCI-E Slot
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 2x Hot-swap SATA Drive Bays
• 900/980W High-efficiency Power Supply

Description

Details

SuperServer SYS-6015T-TV / SYS-6015T-TB 1U Rackmount

Supermicro SYS-6015T-TV / SYS-6015T-T 1U Rackmount with 900/980W High-efficiency Power Supply, Intel® 5000P (Blackford) chipset, support 2x 3.5" SATA Hot-swap drive
bays, using Supermicro Super X7DBT + Super X7DBT Motherboard and SC808T-980V(B) Rackmount Chassis

Product SKU
SYS-6015T-TV	• SuperServer 6015T-TV (Silver)
SYS-6015T-TB	• SuperServer 6015T-TB (Black)

Motherboard
	Super X7DBT + Super X7DBT

Processor/Cache
CPU	• Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz
System Bus	• 1333 / 1066 MHz system bus
Operating System Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory (per node)
Memory Capacity	• Eight 240-pin DIMM sockets • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual channels memory bus • Memory must be populated in pairs • Memory Mirroring supported
Memory Type	• 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 512 MB, 1GB, 2GB, 4GB
Memory Voltage	• 1.8V only • 1.5V (AMB)
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5000P (Blackford) chipset • MCH + ESB2
SATA	• Intel ESB2 SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Windows only) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 / 1.5 • 200-pin IPMI slot (SIMSO) • (Optional: AOC-SIMSO(+))
Network Controllers	• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	• ATI ES1000 controller with 16 MB of video memory
Super I/O	• Winbond 83627HF chip
Clock Generator	• CK410B

Input/Output (per node)
Serial ATA	• Four Serial ATA ports
LAN	• 2x RJ45 LAN ports
USB	• 2x USB rear ports • 2x USB internal headers • Total 4 USB 2.0 Compliant
VGA	• 1x VGA Port
Serial Port	• 1 Fast UART 16550 serial port

Chassis
Form Factor	• 1U Rackmount
Model	• SC808T-980V(B)

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.75" (705mm)
Weight	• 40 lbs (18.1kg)
Available Color	• Silver, Black

Front Panel (per node)
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots (per node)
PCI-Express	• 1 (x8) PCI-e slot

Drive Bays (per node)
Hot Swap	• 2x 3.5" SATA Hot-swap drive bays

SATA Backplane
	• 1U SATA Backplane

System Cooling
Fans	• 6x Cooling Fans

Power Supply
	980W AC-DC power supply w/ PFC
AC Input	• 100 - 240V, 60-50Hz, 14-6 Amp
+5V sb	• 4 Amp
+12V	• 81 Amp

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.3 • PCI 2.2 • ACPI 1.0/2.0 • USB Keyboard support

Operating Environment / Compliance
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Operating Environment / Compliance

Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
